In Stock Hot Product
042N0822

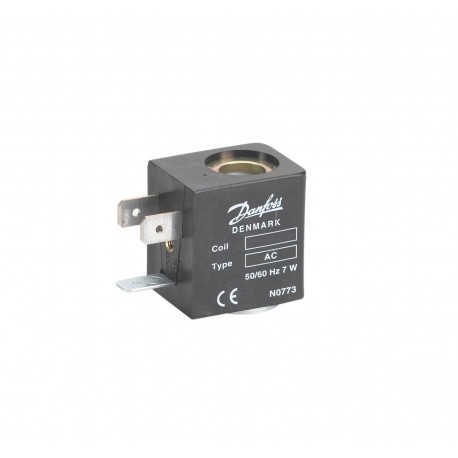

042N0822 DANFOSS REFRIGERATION Solenoid coil, AC 240V 50/60HZ 7W DIN SPADE+PACK9-22
$0.00USD
3629 in stock
Key Specifications
EAN ():5702423049875
Type ():AC240C
Colour ():Black
Volume ():0.097 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423049875 |
| Type () | AC240C |
| Colour () | Black |
| Volume () | 0.097 Liter |
| Net weight () | 0.049 Kilogram |
| Serviceable () | No |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.058 Kilogram |
| Actuator size () | 9 mm |
| Product group () | Solenoid valves |
| Coil fastening () | Finger screw |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Multi pack |
| Coil connection () | DIN Spade |
| In scope of WEEE () | Yes |
| SCIP dossier no. () | 23785618-b379-4da7-a913-ecd40c8fae6d |
| Type designation () | AC240C |
| EU RoHS compliance () | Out of scope |
| Parts Program name () | EV210AEV220AEV310A |
| Enclosure rating IP () | IP00 |
| Product accessories () | Solenoid coil accessories |
| Electrical connector () | 3 x spades |
| Electrical connection () | DIN Spade |
| Power consumption [W] () | 7 W |
| Supply voltage [V] AC () | 240 V |
| Product Name Description () | Solenoid coil |
| SCIP dossier product name () | Solenoid coils |
| Electrical connection size () | 6.3 mm x 0.8 mm |
| Power consumption [W] 50Hz () | 7.5 W |
| Power consumption [W] 60Hz () | 5.5 W |
| Power consumption 50Hz [VA] () | 11 VA |
| Power consumption 60Hz [VA] () | 9 VA |
| Quantity per packing format () | 24 pc |
| Supply voltage 50Hz Max [V] () | 240 V |
| Supply voltage 60Hz Max [V] () | 240 V |
| Electrical connection standard () | EN175301-803 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 50 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 122 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid coil, AC240C, DIN Spade, Supply voltage [V] AC: 240, Multi pack
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: DIN Spade, Supply voltage [V] AC: 240, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
