042H2030

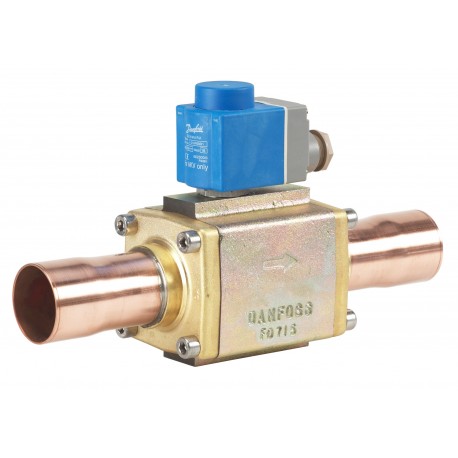

042H2030 DANFOSS REFRIGERATION Electric expansion valve
$0.00USD
4089 in stock
Key Specifications
EAN ():5702422111047
Coil ():No
Type ():AKV 20-5
Volume ():7.56 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422111047 |
| Coil () | No |
| Type () | AKV 20-5 |
| Volume () | 7.56 Liter |
| Approval () | EACLLC CDC TYSK |
| Function () | NC |
| Direction () | Straightway |
| Net weight () | 4.26 Kg |
| Serviceable () | Electric valve spare parts |
| Gross weight () | 4.728 Kg |
| MinODP [bar] () | 0 bar |
| MinODP [psi] () | 0 psi |
| Refrigerants () | R134aR22R23R404AR407AR407CR407FR407HR410AR422BR422DR438AR448AR449AR449BR450AR452AR463AR507AR513AR513BR515AR515BR744 |
| MOPD[bar/psi] () | 18 bar |
| Product group () | Expansion valves |
| Packing format () | Single pack |
| Inlet size [in] () | 2 in |
| Kv value [m³/h] () | 6.3 m³/h |
| Outlet size [in] () | 2 in |
| SCIP dossier no. () | 6a76eb5e-6ca8-43d3-be03-8320fd28438e |
| Type designation () | Electric expansion valve |
| Orifice size [mm] () | 14 mm |
| Cv value [gal/min] () | 7.283 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| MaxOPD[bar] 10W AC () | 18 bar |
| MaxOPD[psi] 10W AC () | 260 psi |
| Ambient temperature () | -40 - 50 °C |
| Product accessories () | Electric valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Inlet connection type () | Weld connection |
| Outlet connection type () | Weld connection |
| Manual operation option () | No |
| Rated capacity R22 [kW] () | 630 kW |
| Product Name Description () | Electric expansion valve |
| SCIP dossier product name () | AKV 20/EVR 32-40/EVRH 40 |
| Max. Working Pressure [bar] () | 28 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 400 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 60 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 140 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°F] [max] () | 120 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
AKV20-5 Valve Weld con. 2in Singlep.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Weld connection, Inlet size [in]: 2 in, Outlet connection type: Weld connection, Outlet size [in]: 2 in
