040B0040

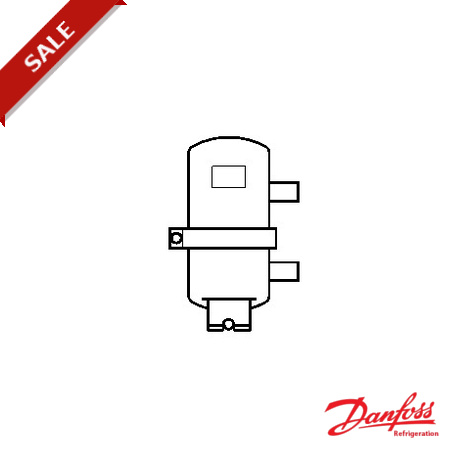

040B0040 DANFOSS REFRIGERATION Oil separator
$0.00USD
4371 in stock
Key Specifications
EAN:5702422003991
Approval:C UL US LISTEDEACLLC CDC TYSKPED
Net weight:3.26 Kg
Serviceable:OUB spare parts
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702422003991 |
| Approval | C UL US LISTEDEACLLC CDC TYSKPED |
| Net weight | 3.26 Kg |
| Serviceable | OUB spare parts |
| Gross weight | 4.04 Kg |
| Product name | Oil separator |
| Product type | OUB 4 |
| Refrigerants | R134aR22R404AR407AR407CR407FR422BR422DR438AR448AR449AR450AR452AR507AR513A |
| Product Group | Oil separators |
| Net volume [l] | 2.46 L |
| Packing format | Multi pack |
| Connection size | 1 3/8-12 UNF-2B |
| Inlet size [in] | 1 3/8 in - 12 UNF |
| Outlet size [in] | 1 3/8 in - 12 UNF |
| Approval file name | REFRIGERANT OIL SEPARATOR 169N |
| Further information | Excl. unions |
| Product accessories | OUB accessories |
| Product description | Oil Separator Excl. Unions |
| Product family name | OUB |
| Inlet connection type | Union nut |
| Netto volume [gal US] | 0.65 gal |
| Oil reservoir vol. [l] | 0.5 L |
| Outlet connection type | Union nut |
| Return connection type | FLARE |
| Rated capacity R22 [kW] | 11.6 kW |
| Flow direction indicator | Engraved OIL/IN/OUT |
| Max. test pressure [bar] | 40 bar |
| Max. test pressure [psig] | 580 psig |
| Rated capacity R134a [kW] | 9.6 kW |
| Rated capacity R407C [kW] | 16 kW |
| Max. Working Pressure [bar] | 28 bar |
| Oil reservoir vol. [foz US] | 13.53 oz |
| Quantity per packing format | 1 pc |
| Return connection size [in] | 7/16 in - 20 UNF |
| Max. Working Pressure [psig] | 406 psig |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -40 °F |
| Rated capacity R404A/R507 [kW] | 12.8 kW |
| Medium temperature range [°C] [Max] | 120 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 248 °F |
| Medium temperature range [°F] [Min] | -40 °F |
Product Description
OUB 4 Oil Separator M/1
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
