040B0029

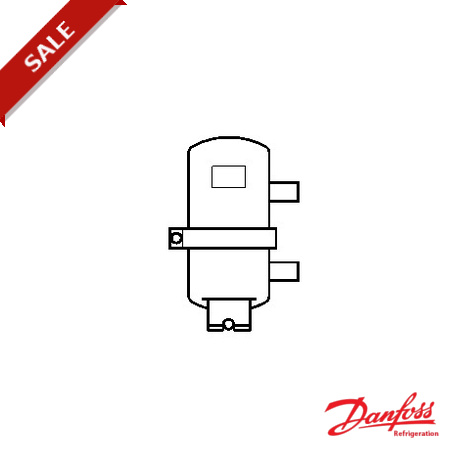

040B0029 DANFOSS REFRIGERATION Oil separator
$0.00USD
3257 in stock
Key Specifications
EAN:5702422120971
Approval:C UL US LISTEDEACLLC CDC TYSK
Net weight:0.97 Kg
Serviceable:OUB spare parts
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702422120971 |
| Approval | C UL US LISTEDEACLLC CDC TYSK |
| Net weight | 0.97 Kg |
| Serviceable | OUB spare parts |
| Gross weight | 1.13 Kg |
| Product name | Oil separator |
| Product type | OUB 1S |
| Refrigerants | R1234zeR1270R134aR22R290R32R404AR407AR407CR407FR422BR422DR438AR448AR449AR450AR452AR454BR507AR513AR600R600a |
| Product Group | Oil separators |
| Net volume [l] | 0.52 L |
| Packing format | Multi pack |
| Inlet size [mm] | 10 mm |
| Outlet size [mm] | 10 mm |
| Approval file name | REFRIGERANT OIL SEPARATOR 169N |
| Product accessories | OUB accessories |
| Product description | Oil Separator Excl. Unions |
| Product family name | OUB |
| Inlet connection type | SOLDER, ODF |
| Netto volume [gal US] | 0.14 gal |
| Oil reservoir vol. [l] | 0.1 L |
| Outlet connection type | SOLDER, ODF |
| Return connection type | Solder, ODF |
| Rated capacity R22 [kW] | 3.1 kW |
| Flow direction indicator | Engraved OIL/IN/OUT |
| Max. test pressure [bar] | 40 bar |
| Max. test pressure [psig] | 580 psig |
| Rated capacity R134a [kW] | 2.5 kW |
| Rated capacity R407C [kW] | 4.4 kW |
| Max. Working Pressure [bar] | 28 bar |
| Oil reservoir vol. [foz US] | 3.38 oz |
| Quantity per packing format | 4 pc |
| Return connection size [mm] | 6 mm |
| Max. Working Pressure [psig] | 406 psig |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -40 °F |
| Rated capacity R404A/R507 [kW] | 3.5 kW |
| Medium temperature range [°C] [Max] | 120 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 248 °F |
| Medium temperature range [°F] [Min] | -40 °F |
Product Description
OUB 1S Oil Separator M/4
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
