034N0082

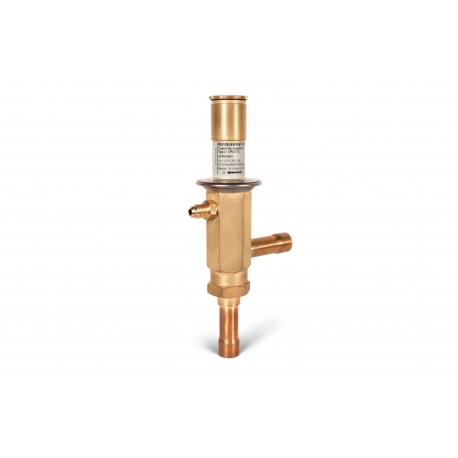

034N0082 DANFOSS REFRIGERATION Hot gas bypass regulator
$0.00USD
3309 in stock
Key Specifications
EAN ():5702422007821
Type ():CPCE 12
Volume ():2.111 Liter
Approval ():C UL US LISTEDEACLLC CDC TYSKRoHSRoHS China
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422007821 |
| Type () | CPCE 12 |
| Volume () | 2.111 Liter |
| Approval () | C UL US LISTEDEACLLC CDC TYSKRoHSRoHS China |
| Net weight () | 0.84 Kg |
| Serviceable () | KV valves spare parts |
| Gross weight () | 0.96 Kg |
| Refrigerants () | R1270R134aR22R290R404AR407AR407CR407FR448AR449AR450AR452AR507AR513AR600R600aR407HR449BR454CR455AR515BR516AR454AR1234ze(E) |
| Product group () | Press. and temp. regul. valves |
| Packing format () | Multi pack |
| Inlet size [in] () | 1/2 in |
| Inlet size [mm] () | 12 mm |
| Outlet size [in] () | 1/2 in |
| Outlet size [mm] () | 12 mm |
| SCIP dossier no. () | 2fa296aa-9174-45d9-b8d8-abed380ef992 |
| Approval file name () | REFRIGERANT VALVE 53R0 |
| EU RoHS compliance () | No - out of scope |
| Further information () | Injection: LG liq. gas mixer |
| Product accessories () | KV valves accessories |
| Factory setting [bar] () | 0.4 bar |
| Inlet connection type () | Solder, ODF |
| Factory setting [psig] () | 5.8 psig |
| Outlet connection type () | Solder, ODF |
| Rated capacity R22 [TR] () | 6.2 TR |
| Rated capacity R22 [kW] () | 17.4 kW |
| Flow direction indicator () | Embossed 1-way arrow |
| Max. test pressure [bar] () | 31 bar |
| Product Name Description () | Hot gas bypass regulator |
| UL approved refrigerants () | R134aR22R404AR407AR407CR407FR407HR448AR449AR449BR450AR452AR507AR513AR515BR516A |
| Max. test pressure [psig] () | 450 psig |
| Rated capacity R134a [TR] () | 4.3 TR |
| Rated capacity R134a [kW] () | 7.9 kW |
| Rated capacity R407C [TR] () | 6.7 TR |
| Rated capacity R407C [kW] () | 19 kW |
| Pilot line conn. size [in] () | 7/16 in - 20 UNF |
| Pilot line connection type () | Flare |
| Rated cap. conditions [SI] () | Delta ts=4Ktevap=-10 °Ctcond=30 °C |
| Differential pressure [bar] () | 18 bar |
| Differential pressure [psi] () | 260 psi |
| Max. Working Pressure [bar] () | 28 bar |
| Quantity per packing format () | 8 pc |
| Rated cap. R404A/R507A [TR] () | 6.3 TR |
| Rated cap. R404A/R507A [kW] () | 16.4 kW |
| Rated cap. conditions [IMP] () | Delta ts=7 °Ftcond=86 °Ftevap=-14 °F |
| Max. Working Pressure [psig] () | 406 psig |
| Regulation range [bar] [max] () | 6 bar |
| Regulation range [bar] [min] () | 0 bar |
| Regulation range [psi] [max] () | 85 psi |
| Regulation range [psi] [min] () | 0 psi |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Diisopentyl phthalate (CAS no. 605-50-5) |
| Regulation range [psig] Pe [max] () | 85 psig |
| Regulation range [psig] Pe [min] () | 0 psig |
| Medium temperature range [°C] [max] () | 140 °C |
| Medium temperature range [°C] [min] () | -50 °C |
| Medium temperature range [°F] [max] () | 284 °F |
| Medium temperature range [°F] [min] () | -58 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
CPCE 12 Hot Gas Bypass Reg M/8
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet size [mm]: 12.00, Inlet connection type: Solder, ODF, Outlet size [mm]: 12.00, Outlet connection type: Solder, ODF, 0.0 bar - 6.0 bar, Max. Working Pressure [bar]: 28.0
