034L1076

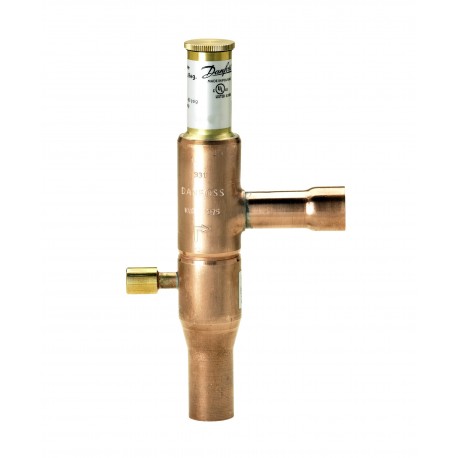

034L1076 DANFOSS REFRIGERATION Evaporator pressure regulator
$0.00USD
3263 in stock
Key Specifications
EAN:5702428410748
Approval:C UL US LISTEDEACLLC CDC TYSKRoHSRoHS China
Equipment:Schrader valve access port
Net weight:0.9 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428410748 |
| Approval | C UL US LISTEDEACLLC CDC TYSKRoHSRoHS China |
| Equipment | Schrader valve access port |
| Net weight | 0.9 Kg |
| Serviceable | KV valves spare parts |
| Gross weight | 0.98 Kg |
| Product name | Evaporator pressure regulator |
| Product type | KVP 28 |
| Refrigerants | R134aR22R404AR407AR407CR407FR422BR422DR448AR449AR450AR452AR507AR513AR407HR449BR134a/R513AR454CR455AR515BR516A |
| Kv value note | AT MAX P-BAND |
| Product Group | Press. and temp. regul. valves |
| Packing format | Industrial pack |
| Inlet size [in] | 1 1/8 IN |
| Kv value [m³/h] | 8 m3/h |
| Outlet size [in] | 1 1/8 IN |
| Identical product | 034L0026 |
| P band max. [bar] | 2.8 bar |
| P band max. [psi] | 40.6 psi |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Cv value [gal/min] | 9.25 gal/min |
| Further information | Max. extern.bellow press.25bar |
| Product accessories | No |
| Product family name | KVP |
| Factory setting [bar] | 2 bar |
| Inlet connection type | SOLDER, ODF |
| Factory setting [psig] | 29 psig |
| Outlet connection type | SOLDER, ODF |
| Rated capacity R22 [TR] | 2.8 tons |
| Rated capacity R22 [kW] | 8.6 kW |
| System line application | Suction line |
| Flow direction indicator | Engraved 1-way arrow |
| Max. test pressure [bar] | 19.8 bar |
| Max. test pressure [psig] | 286 psig |
| Rated capacity R134a [TR] | 1.9 tons |
| Rated capacity R134a [kW] | 6.1 kW |
| Rated capacity R407C [TR] | 2.6 tons |
| Rated capacity R407C [kW] | 7.9 kW |
| Max. Working Pressure [bar] | 18 bar |
| Quantity per packing format | 7 pc |
| Max. Working Pressure [psig] | 260 psig |
| Regulation range [bar] [Max] | 5.5 bar |
| Regulation range [bar] [Min] | 0 bar |
| Rated capacity R404A/R507 [TR] | 2.4 tons |
| Rated capacity R404A/R507 [kW] | 7.7 kW |
| Regulation range [psig] Pe [Max] | 80 psig |
| Regulation range [psig] Pe [Min] | 0 psig |
| Medium temperature range [°C] [Max] | 130 °C |
| Medium temperature range [°C] [Min] | -45 °C |
| Medium temperature range [°F] [Max] | 266 °F |
| Medium temperature range [°F] [Min] | -49 °F |
Product Description
Evaporator Pressure Regulator, KVP 28
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
