034L1047

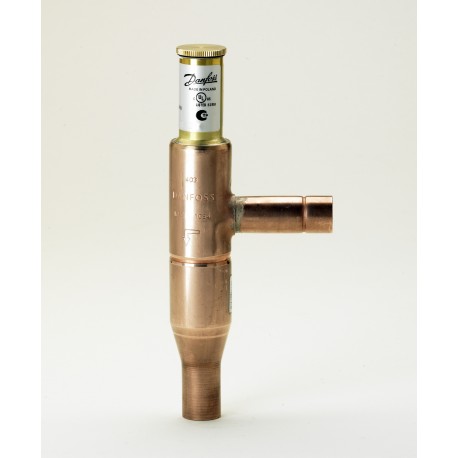

034L1047 DANFOSS REFRIGERATION Hot gas bypass regulator
$0.00USD
4237 in stock
Key Specifications
EAN ():5702428063081
Type ():KVC 15
Volume ():0.62 Liter
Approval ():C UL US LISTEDEACLLC CDC TYSKRoHSRoHS China
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428063081 |
| Type () | KVC 15 |
| Volume () | 0.62 Liter |
| Approval () | C UL US LISTEDEACLLC CDC TYSKRoHSRoHS China |
| Net weight () | 0.319 Kg |
| Serviceable () | KV valves spare parts |
| Gross weight () | 0.364 Kg |
| Refrigerants () | R1270R134aR22R290R404AR407AR407CR407FR422BR422DR448AR449AR450AR452AR507AR513AR600R600aR407HR449BR454CR455AR515BR516AR1234yfR454AR1234ze(E) |
| Product group () | Press. and temp. regul. valves |
| Packing format () | Industrial pack |
| Inlet size [in] () | 5/8 in |
| Inlet size [mm] () | 16 mm |
| Kv value [m³/h] () | 1.25 m³/h |
| Outlet size [in] () | 5/8 in |
| Outlet size [mm] () | 16 mm |
| SCIP dossier no. () | 842c526f-b213-4baa-869c-a91bb999a318 |
| Identical product () | 034L0147 |
| P band max. [bar] () | 2 bar |
| P band max. [psi] () | 29 psi |
| Approval file name () | REFRIGERANT VALVE 53R0 |
| Cv value [gal/min] () | 1.44 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Product accessories () | No |
| Factory setting [bar] () | 2 bar |
| Inlet connection type () | Solder, ODF |
| Oil free refrigerants () | R1234ze(E)R513A |
| Factory setting [psig] () | 29 psig |
| Outlet connection type () | Solder, ODF |
| Rated capacity R22 [TR] () | 4.17 TR |
| Rated capacity R22 [kW] () | 14.9 kW |
| Flow direction indicator () | Engraved 1-way arrow |
| Lubricants compatibility () | Oilfree applications |
| Max. test pressure [bar] () | 31 bar |
| Product Name Description () | Hot gas bypass regulator |
| UL approved refrigerants () | R134aR22R404AR407AR407CR407FR407HR422BR422DR448AR449AR449BR450AR452AR507AR513AR515BR516A |
| Max. test pressure [psig] () | 450 psig |
| Rated capacity R134a [TR] () | 2.65 TR |
| Rated capacity R134a [kW] () | 9.4 kW |
| Rated capacity R407C [TR] () | 4.5 TR |
| Rated capacity R407C [kW] () | 16.4 kW |
| Max. Working Pressure [bar] () | 28 bar |
| Quantity per packing format () | 18 pc |
| Rated cap. R404A/R507A [TR] () | 3.93 TR |
| Rated cap. R404A/R507A [kW] () | 13.6 kW |
| Max. Working Pressure [psig] () | 406 psig |
| Regulation range [bar] [max] () | 6 bar |
| Regulation range [bar] [min] () | 0.2 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Regulation range [psig] Pe [max] () | 87 psig |
| Regulation range [psig] Pe [min] () | 3 psig |
| Medium temperature range [°C] [max] () | 130 °C |
| Medium temperature range [°C] [min] () | -45 °C |
| Medium temperature range [°F] [max] () | 266 °F |
| Medium temperature range [°F] [min] () | -49 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Hot gas bypass regulator, KVC 15
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet size [mm]: 16.00, Inlet connection type: Solder, ODF, Outlet size [mm]: 16.00, Outlet connection type: Solder, ODF, 0.2 bar - 6.0 bar, Kv value [m³/h]: 1.250, Max. Working Pressure [bar]: 28.0
