034L0100

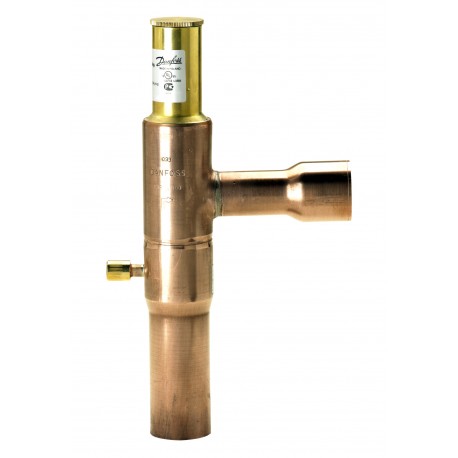

034L0100 DANFOSS REFRIGERATION Condensing pressure regulator
$0.00USD
3222 in stock
Key Specifications
EAN ():5702428411561
Type ():KVR 35
Volume ():3.032 Liter
Approval ():C UL US LISTEDEACLLC CDC TYSKRoHSRoHS China
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428411561 |
| Type () | KVR 35 |
| Volume () | 3.032 Liter |
| Approval () | C UL US LISTEDEACLLC CDC TYSKRoHSRoHS China |
| Equipment () | Schrader valve access port |
| Net weight () | 0.985 Kilogram |
| Serviceable () | KV valves spare parts |
| Gross weight () | 1.088 Kilogram |
| Refrigerants () | R134aR22R404AR407AR407CR407FR407HR422BR422DR448AR449AR449BR450AR452AR454AR454CR455AR507AR513AR515BR516A |
| UL evaluated () | Yes |
| Product group () | Press. and temp. regul. valves |
| Packing format () | Multi pack |
| Inlet size [in] () | 1 3/8 in |
| Inlet size [mm] () | 35 mm |
| Outlet size [in] () | 1 3/8 in |
| Outlet size [mm] () | 35 mm |
| SCIP dossier no. () | 842c526f-b213-4baa-869c-a91bb999a318 |
| P band max. [bar] () | 5 bar |
| P band max. [psi] () | 72.5 psi |
| Approval file name () | REFRIGERANT VALVE 53R0 |
| EU RoHS compliance () | Yes |
| UK RoHS compliance () | Out of scope |
| Product accessories () | No |
| China RoHS compliance () | Yes |
| Factory setting [bar] () | 10 bar |
| Inlet connection type () | Solder, ODF |
| Oil free refrigerants () | R1234ze(E)R513A |
| Factory setting [psig] () | 145 psig |
| Outlet connection type () | Solder, ODF |
| Rated capacity R22 [TR] () | 32.6 TR |
| Rated capacity R22 [kW] () | 129 kW |
| EU RoHS exemption clause () | No |
| Flow direction indicator () | Engraved 1-way arrow |
| Lubricants compatibility () | Oilfree applications |
| Max. test pressure [bar] () | 31 bar |
| Other RoHS documentation () | EAEU RoHS |
| Product Name Description () | Condensing pressure regulator |
| UL approved refrigerants () | R134aR22R404AR407AR407CR407FR407HR422BR422DR448AR449AR449BR450AR452AR507AR513AR515BR516A |
| Max. test pressure [psig] () | 450 psig |
| Rated capacity R134a [TR] () | 30.2 TR |
| Rated capacity R134a [kW] () | 121 kW |
| Rated capacity R407C [TR] () | 35.5 TR |
| Rated capacity R407C [kW] () | 139.3 kW |
| Rated cap. conditions [SI] () | Delta p hotgas=0.4 barDelta p liquid=0.2 barOffset=3 bartcond=30 °Ctevap=-10 °C |
| Max. Working Pressure [bar] () | 28 bar |
| Quantity per packing format () | 7 pc |
| Rated cap. R404A/R507A [TR] () | 20.9 TR |
| Rated cap. R404A/R507A [kW] () | 93.7 kW |
| Rated cap. conditions [IMP] () | Delta p hotgas=6 psiDelta p liquid=3 psitcond=110 °Ftevap=40 °F |
| Max. Working Pressure [psig] () | 406 psig |
| Rated cap. R22, Hot gas [TR] () | 10.93 TR |
| Rated cap. R22, Hot gas [kW] () | 34.9 kW |
| Regulation range [bar] [max] () | 17.5 bar |
| Regulation range [bar] [min] () | 5 bar |
| Rated cap. R134a, Hot gas [TR] () | 8.04 TR |
| Rated cap. R134a, Hot gas [kW] () | 30.6 kW |
| Rated cap. R407C, Hot gas [TR] () | 11.91 TR |
| Rated cap. R407C, Hot gas [kW] () | 37.7 kW |
| Rated cap.R404A/R507,Hot gas[T () | 8.66 TR |
| Rated cap.R404A/R507,Hot gas[k () | 34.9 kW |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Regulation range [psig] Pe [max] () | 254 psig |
| Regulation range [psig] Pe [min] () | 73 psig |
| Medium temperature range [°C] [max] () | 130 °C |
| Medium temperature range [°C] [min] () | -45 °C |
| Medium temperature range [°F] [max] () | 266 °F |
| Medium temperature range [°F] [min] () | -49 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
KVR 35 Condensing Pres. Reg. M/7
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Max. Working Pressure [bar]: 28.0
