034G7902

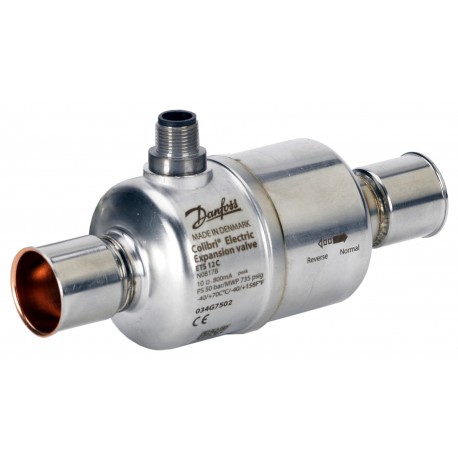

034G7902 DANFOSS REFRIGERATION Electric expansion valve
$0.00USD
4796 in stock
Key Specifications
EAN ():5702428908801
Type ():ETS 24C
Brand ():Colibri
Volume ():1.625 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428908801 |
| Type () | ETS 24C |
| Brand () | Colibri |
| Volume () | 1.625 Liter |
| Approval () | CEEACLLC CDC TYSKURATEXCCCCMIMUKCA |
| Direction () | Straightway |
| Step mode () | 2-phase full stepHalf stepMicrostep (recommended) |
| Motor type () | Bi-polar |
| Net weight () | 0.296 Kg |
| Sightglass () | No |
| Fluid Group () | 1 |
| Serviceable () | No |
| Total steps () | 600 (full steps) |
| Gross weight () | 0.392 Kg |
| MaxOPD [bar] () | 40 bar |
| MaxOPD [psi] () | 580 psi |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R1234yfR1270R134aR23R290R32R404AR407AR407CR407FR410AR417AR422AR422DR427AR438AR444BR448AR449AR450AR452AR452BR454BR513AR600R600aR1233zd(E)R22R407BR407HR413AR422BR442AR447AR449BR454AR454CR455AR463AR502R512AR513BR515AR515BR516AR245faR412AR1234ze(E)R227eaR507A |
| Body material () | Stainless steel |
| EX Sales text () | -40 / +70CII 3G Ex ec IIB T4 Gc |
| Product group () | Expansion valves |
| Flow direction () | Bi-flow |
| Packing format () | Multi pack |
| Inlet size [in] () | 7/8 in |
| Inlet size [mm] () | 22 mm |
| Kv value [m³/h] () | 1.3 m³/h |
| Outlet size [in] () | 7/8 in |
| Outlet size [mm] () | 22 mm |
| SCIP dossier no. () | d39a6c02-4090-4810-a3a6-b5fae7839781 |
| Resistance [kOhm] () | 0 kOhm |
| EU RoHS compliance () | No - out of scope |
| Connection material () | Bi-metal: Steel/copper |
| Enclosure rating IP () | IP67 |
| Product accessories () | Stepper valve accessories |
| MaxOPD reverse [bar] () | 40 bar |
| MaxOPD reverse [psi] () | 580 psi |
| Electrical connection () | M12 |
| Inlet connection type () | Solder ODF |
| Oil free refrigerants () | R1234ze(E)R134aR513AR515AR515BR516A |
| Rated cap. cond. note () | Full stroke open, normal flow |
| Balanced port [Yes/No] () | Yes |
| Outlet connection type () | Solder ODF |
| Phase inductance [µH] () | 14000 μH |
| Manual operation option () | AST-G service driver |
| Rated capacity R22 [TR] () | 40.1 TR |
| Rated capacity R22 [kW] () | 141 kW |
| Flow direction indicator () | Laser engraved 2-way arrow |
| Lubricants compatibility () | MOPOE |
| Phase current (RMS) [mA] () | 600 mA |
| Product Name Description () | Electric expansion valve |
| UL approved refrigerants () | R134aR227eaR23R404AR407AR407CR407FR410AR417AR422AR422DR427AR438AR448AR449AR450AR452AR507AR513A |
| Phase current (peak) [mA] () | 800 mA |
| Rated capacity R134a [TR] () | 31.9 TR |
| Rated capacity R134a [kW] () | 111 kW |
| Rated capacity R407C [TR] () | 44.5 TR |
| Rated capacity R407C [kW] () | 155 kW |
| Rated capacity R410A [TR] () | 49.2 TR |
| Rated capacity R410A [kW] () | 170 kW |
| Electrical connection size () | 4 pin |
| Max allowed duty cycle [%] () | 100 % |
| Operating current max. [A] () | 0.8 A |
| Rated cap. conditions [SI] () | tcond=32 ºCtevap=5 ºCtliq=28 ºC |
| Max. Working Pressure [bar] () | 50 bar |
| Quantity per packing format () | 12 pc |
| Rated cap. R404A/R507A [TR] () | 49.2 TR |
| Rated cap. R404A/R507A [kW] () | 105 kW |
| Rated cap. conditions [IMP] () | tcond=90 ºFtevap=40 ºFtliq=82 ºF |
| Electrical conn. Male/Female () | Male |
| Max. Working Pressure [psig] () | 725 psig |
| Compatible Danfoss controllers () | EKE 1AEKE 1BEKE 1CMCX 152VMCX 061V |
| Max tot PowerCons CurrDrive[W] () | 7.2 W |
| Max tot PowerCons VoltDrive[W] () | 7.2 W |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Full travel time speed [s] [max] () | 6 s |
| Full travel time speed [s] [min] () | 3 s |
| Refrigerant temperature [ºC] [max] () | 70 °C |
| Refrigerant temperature [ºC] [min] () | -40 °C |
| Refrigerant temperature [ºF] [max] () | 158 °F |
| Refrigerant temperature [ºF] [min] () | -40 °F |
| Ambient temperature range [°C] [max] () | 70 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 158 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
ETS 24C Electric exp. valve 7/8x7/8
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder ODF, Inlet size [mm]: 22.00, Outlet size [in]: 7/8 in
