034G7802

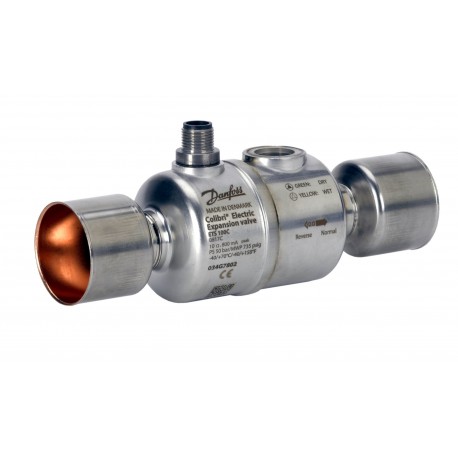

034G7802 DANFOSS REFRIGERATION Electric expansion valve
$0.00USD
4984 in stock
Key Specifications
EAN:5702428888066
Brand:Colibri
Approval:CEEACLLC CDC TYSKUR
Category:Art. 4, par. 3
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428888066 |
| Brand | Colibri |
| Approval | CEEACLLC CDC TYSKUR |
| Category | Art. 4, par. 3 |
| Direction | Straightway |
| Step mode | 2-phase full stepHalf stepMicrostep (recommended) |
| Motor type | Bi-polar |
| Net weight | 0.34 Kg |
| Sightglass | Type SG (N indicator) |
| Fluid Group | II |
| Serviceable | No |
| Total steps | 600 (full steps) |
| Gross weight | 0.45 Kg |
| MaxOPD [bar] | 40 bar |
| MaxOPD [psi] | 580 psi |
| Product name | Electric expansion valve |
| Product type | ETS 100C |
| Refrigerants | R1234zeR134aR23R404AR407AR407CR407FR410AR417AR422AR422DR427AR438AR448AR449AR450AR452AR507R513AR227 |
| Body material | Stainless steel |
| Product Group | Expansion valves |
| Flow direction | Bi-flow |
| Packing format | Multi pack |
| Connection type | Solder, ODF |
| Inlet size [in] | 1 3/8 IN |
| Inlet size [mm] | 35 mm |
| Kv value [m³/h] | 5 m3/h |
| Outlet size [in] | 1 3/8 IN |
| Outlet size [mm] | 35 mm |
| Resistance [kOhm] | 0.01 kOhm |
| Connection material | Bi-metal: Steel/copper |
| Enclosure rating IP | IP67 |
| Product accessories | Stepper valve accessories |
| Product family name | ETS Colibri |
| MaxOPD reverse [bar] | 40 bar |
| MaxOPD reverse [psi] | 580 psi |
| Electrical connection | M12 |
| Inlet connection type | Solder ODF |
| Rated cap. cond. note | Full stroke open, normal flow |
| Balanced port [Yes/No] | Yes |
| Outlet connection type | Solder ODF |
| Phase inductance [µH] | 14000 µHz |
| Manual operation option | AST-G service driver |
| Rated capacity R22 [TR] | 149.3 tons |
| Rated capacity R22 [kW] | 525.6 kW |
| System line application | Liquid line |
| Flow direction indicator | Laser engraved 2-way arrow |
| Phase current (RMS) [mA] | 600 mA |
| Phase current (peak) [mA] | 800 mA |
| Rated capacity R134a [TR] | 119 tons |
| Rated capacity R134a [kW] | 413 kW |
| Rated capacity R407C [TR] | 166 tons |
| Rated capacity R407C [kW] | 577 kW |
| Rated capacity R410A [TR] | 183 tons |
| Rated capacity R410A [kW] | 635 kW |
| Electrical connection size | 4 pin |
| Max allowed duty cycle [%] | 100 % |
| Operating current max. [A] | 0.8 A |
| Rated cap. conditions [SI] | tcond=32 ºCtevap=5 ºCtliq=28 ºC |
| Max. Working Pressure [bar] | 50 bar |
| Quantity per packing format | 12 pc |
| Rated cap. conditions [IMP] | tcond=90 ºFtevap=40 ºFtliq=82 ºF |
| Electrical conn. Male/Female | Male |
| Max total power consumpt [W] | 7.2 W |
| Max. Working Pressure [psig] | 725 psig |
| Refrigerant oil compatibility | All ester oilsOilfree applications |
| Compatible Danfoss controllers | EKE 1AEKE 1BEKE 1CMCX 152VMCX 061V |
| Max tot PowerCons CurrDrive[W] | 7.2 W |
| Max tot PowerCons VoltDrive[W] | 7.2 W |
| Rated capacity R404A/R507 [TR] | 183 tons |
| Rated capacity R404A/R507 [kW] | 393 kW |
| Full travel time speed [s] [Max] | 6 " |
| Full travel time speed [s] [Min] | 3 " |
| Refrigerant temperature [ºC] [Max] | 70 °C |
| Refrigerant temperature [ºC] [Min] | -40 °C |
| Refrigerant temperature [ºF] [Max] | 158 °F |
| Refrigerant temperature [ºF] [Min] | -40 °F |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
Product Description
ETS 100C Electric exp. valve 13/8x13/8
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
