034G5035

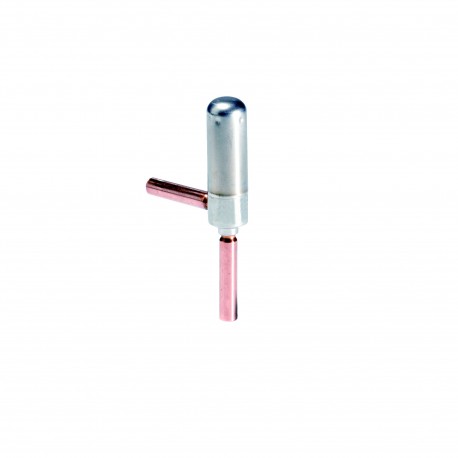

034G5035 DANFOSS REFRIGERATION Electric expansion valve
$0.00USD
3946 in stock
Key Specifications
EAN:5702428825511
Approval:CECQCEACLLC CDC TYSKRoHSUL
Category:Art. 3, par. 3
Direction:Angleway
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428825511 |
| Approval | CECQCEACLLC CDC TYSKRoHSUL |
| Category | Art. 3, par. 3 |
| Direction | Angleway |
| Step mode | 2-phase full stepHalf step (recommended)Microstep |
| Motor type | Permanent magnet stepper motor |
| Net weight | 0.05 Kg |
| Fluid Group | II |
| Serviceable | No |
| Total steps | 480 (half steps) |
| Gross weight | 0.08 Kg |
| MaxOPD [bar] | 35 bar |
| Product name | Electric expansion valve |
| Product type | ETS 6 - 25 |
| Refrigerants | R134aR22/R407CR404A/R507R410A |
| MOPD[bar/psi] | 35 BAR |
| MaxOPD [psig] | 507 psig |
| Product Group | Expansion valves |
| Flow direction | Bi-flow |
| Packing format | Single pack |
| Connection type | Solder, ODF |
| Inlet size [in] | 5/16 in |
| Inlet size [mm] | 7.94 mm |
| Outlet size [in] | 5/16 in |
| Outlet size [mm] | 7.94 mm |
| Identical product | 034G5030 |
| Orifice size [mm] | 2.5 mm |
| Parts Program name | ETS 6 |
| Connection material | Copper |
| Product accessories | Stepper valve accessories |
| Product family name | ETS 6 |
| Manual operation option | AST-G service driverETS 6 Manual coil |
| Rated capacity R22 [TR] | 5.57 tons |
| Rated capacity R22 [kW] | 19.6 kW |
| System line application | Liquid line |
| Rated capacity R134a [TR] | 4.35 tons |
| Rated capacity R134a [kW] | 15.3 kW |
| Rated capacity R407C [TR] | 5.72 tons |
| Rated capacity R407C [kW] | 20.1 kW |
| Rated capacity R410A [TR] | 6.54 tons |
| Rated capacity R410A [kW] | 23 kW |
| Rated cap. conditions [SI] | Subcooling=0 ºCSuperheat=0 ºCtcond=38 ºCtevap=5 ºC |
| Max. Working Pressure [bar] | 47 bar |
| Quantity per packing format | 1 pc |
| Rated cap. conditions [IMP] | Subcooling=32 ºFSuperheat=32 ºFtcond=100 ºFtevap=41 ºF |
| Max. Working Pressure [psig] | 681 psig |
| Refrigerant oil compatibility | All ester oilsAll mineral oils |
| Compatible Danfoss controllers | EIM 336EKE 1AEKE 1BEKE 1C |
| Rated capacity R404A/R507 [TR] | 3.92 tons |
| Rated capacity R404A/R507 [kW] | 13.8 kW |
| Full travel time speed [s] [Max] | 16 " |
| Full travel time speed [s] [Min] | 6 " |
| Refrigerant temperature [ºC] [Max] | 70 °C |
| Refrigerant temperature [ºC] [Min] | -30 °C |
| Refrigerant temperature [ºF] [Max] | 158 °F |
| Refrigerant temperature [ºF] [Min] | -22 °F |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -30 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -22 °F |
Product Description
ETS 6-25 Electric exp. valve
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
