034G0501

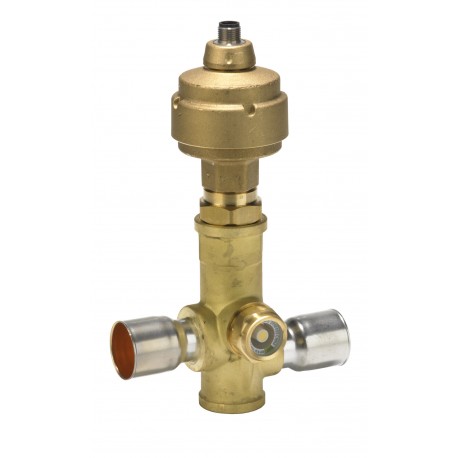

034G0501 DANFOSS REFRIGERATION Electric expansion valve
$0.00USD
4214 in stock
Key Specifications
EAN ():5702428827317
Type ():ETS 100
Volume ():6.248 Liter
Approval ():CEEACLLC CDC TYSKULUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428827317 |
| Type () | ETS 100 |
| Volume () | 6.248 Liter |
| Approval () | CEEACLLC CDC TYSKULUKCA |
| Direction () | Straightway |
| Step mode () | 2-phase full step |
| Motor type () | Bi-polar |
| Net weight () | 1.72 Kg |
| Sightglass () | Yes |
| Fluid Group () | 2 |
| Serviceable () | Stepper valve spare parts |
| Total steps () | 3530 (full steps) |
| Gross weight () | 1.988 Kg |
| MaxOPD [bar] () | 33 bar |
| MaxOPD [psi] () | 478.6 psi |
| PED category () | I |
| Refrigerants () | R134aR22R404AR407AR407CR407FR410AR422BR422DR438AR448AR449AR450AR452AR513AR1234ze(E)R407HR417AR422AR442AR449BR463AR507AR513BR515AR515B |
| Product group () | Expansion valves |
| Flow direction () | Bi-flow |
| Packing format () | Single pack |
| Inlet size [in] () | 1 1/8 in |
| Cable length [m] () | 2 m |
| Outlet size [in] () | 1 3/8 in |
| SCIP dossier no. () | c5625b77-53ec-4079-9d51-0ef83e9579dd |
| Cable length [ft] () | 6.6 ft |
| Resistance [kOhm] () | 0.1 kOhm |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Bi-metal: Steel/copper |
| Enclosure rating IP () | IP67 |
| Product accessories () | Stepper valve accessories |
| MaxOPD reverse [bar] () | 33 bar |
| MaxOPD reverse [psi] () | 478.6 psi |
| Voltage [V] DC [max] () | 13.8 V |
| Voltage [V] DC [min] () | 11.5 V |
| Electrical connection () | M12 |
| Inlet connection type () | Solder ODF |
| Rated cap. cond. note () | Full stroke open, normal flow |
| Balanced port [Yes/No] () | Yes |
| Outlet connection type () | Solder ODF |
| Phase inductance [µH] () | 85000 μH |
| Manual operation option () | AST-G service driver |
| Rated capacity R22 [TR] () | 115.4 TR |
| Rated capacity R22 [kW] () | 400.4 kW |
| Lubricants compatibility () | MOPOE |
| Phase current (RMS) [mA] () | 100 mA |
| Product Name Description () | Electric expansion valve |
| UL approved refrigerants () | R134aR22R404AR407AR407CR407FR410AR422BR422DR438AR448AR449AR450AR452AR507AR513A |
| Phase current (peak) [mA] () | 141 mA |
| Rated capacity R134a [TR] () | 91.2 TR |
| Rated capacity R134a [kW] () | 316.5 kW |
| Rated capacity R407C [TR] () | 128.7 TR |
| Rated capacity R407C [kW] () | 447.8 kW |
| Rated capacity R410A [TR] () | 140.9 TR |
| Rated capacity R410A [kW] () | 488.4 kW |
| Electrical connection size () | 4 pin |
| Max allowed duty cycle [%] () | 100 % |
| Rated cap. conditions [SI] () | tcond=32 °Ctevap=5 °Ctliq=28 °C |
| Max. Working Pressure [bar] () | 45.5 bar |
| Quantity per packing format () | 1 pc |
| Rated cap. R404A/R507A [TR] () | 86.6 TR |
| Rated cap. R404A/R507A [kW] () | 300.5 kW |
| Rated cap. conditions [IMP] () | tcond=90 °Ftevap=40 °Ftliq=82 °F |
| Electrical conn. Male/Female () | Male |
| Max. Working Pressure [psig] () | 660 psig |
| Compatible Danfoss controllers () | EKE 1AEKE 1BEKE 1C |
| Max tot PowerCons CurrDrive[W] () | 1.3 W |
| Max tot PowerCons VoltDrive[W] () | 5.5 W |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Cobalt dichloride (CAS no. 7646-79-9) |
| Full travel time speed [s] [max] () | 23 s |
| Full travel time speed [s] [min] () | 11.5 s |
| Refrigerant temperature [ºC] [max] () | 65 °C |
| Refrigerant temperature [ºC] [min] () | -40 °C |
| Refrigerant temperature [ºF] [max] () | 150 °F |
| Refrigerant temperature [ºF] [min] () | -40 °F |
| Ambient temperature range [°C] [max] () | 60 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 140 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
ETS 100 Electric exp. valve w. SG
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder ODF, Inlet size [in]: 1 1/8 in, Outlet size [in]: 1 3/8 in
