032U7637

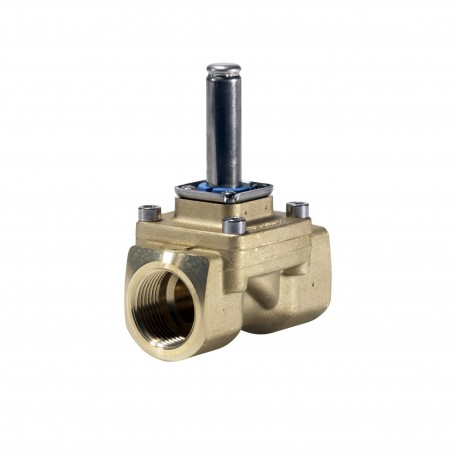

032U7637 DANFOSS CONTROLES INDUSTRIALES Solenoid valve, EV250B
$0.00USD
4345 in stock
Key Specifications
EAN ():5702423204861
Type ():EV250B
Volume ():1.36 Liter
Actuator ():B
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423204861 |
| Type () | EV250B |
| Volume () | 1.36 Liter |
| Actuator () | B |
| Approval () | EACUL |
| Function () | NC |
| Operation () | Assisted lift operated |
| Net weight () | 1.078 Kg |
| Fluid Group () | 1 |
| Serviceable () | Solenoid valve spare parts |
| Gross weight () | 1.14 Kg |
| Actuator size () | 13.5 mm |
| Body material () | DZR brass |
| Product group () | Solenoid valves |
| Seal Material () | FKM |
| Number of ways () | 2/2 |
| Packing format () | Multi pack |
| Connection type () | NPT |
| Kv value [m³/h] () | 7 m³/h |
| SCIP dossier no. () | 23e5d8c0-c744-42b7-b414-f18776b38f4b |
| Type designation () | EV250B 22 |
| Orifice size [mm] () | 22 mm |
| Specification key () | EV250B 22BD N 1F NC000 |
| Actuator size [in] () | 0.53 in |
| Cv value [gal/min] () | 8.1 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Parts Program name () | EV250B |
| Connection material () | DZR brass |
| Connection standard () | ANSI/ASME B1.20.1 |
| Product accessories () | Solenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Connection size [in] () | 1 |
| Media recommendations () | Oil,Comp.Air,Vacuum |
| Max. test pressure [bar] () | 15 bar |
| Media tolerance comments () | Slightly aggressive mediaWater at max. 60°C/140 °F |
| Product Name Description () | Solenoid valve |
| Max media viscosity [cSt] () | 50 cSt |
| Max. test pressure [psig] () | 218 psig |
| Orifice size fraction [in] () | 7/8 in |
| Max. Working Pressure [bar] () | 15.5 bar |
| Quantity per packing format () | 12 pc |
| Connection Internal/External () | Internal |
| Max. Working Pressure [psig] () | 225 psig |
| Est. time to open, water [ms] () | 150 ms |
| Ambient temperature max. [°C] () | 80 °C |
| Ambient temperature max. [°F] () | 176 °F |
| Est. time to close, water [ms] () | 100 ms |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max] () | 10 bar |
| Differential pressure [bar] [min] () | 0 bar |
| Differential pressure [psi] [max] () | 145 psi |
| Differential pressure [psi] [min] () | 0 psi |
| Medium temperature range [°C] [max] () | 100 °C |
| Medium temperature range [°C] [min] () | 0 °C |
| Medium temperature range [°F] [max] () | 212 °F |
| Medium temperature range [°F] [min] () | 32 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid valve, EV250B, Function: NC, NPT, 1, 7.000 m³/h, FKM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Approval: UL; EAC, Body material: DZR brass, Operation: Assisted lift operated, Number of ways: 2/2
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
