In Stock Hot Product
032U6536

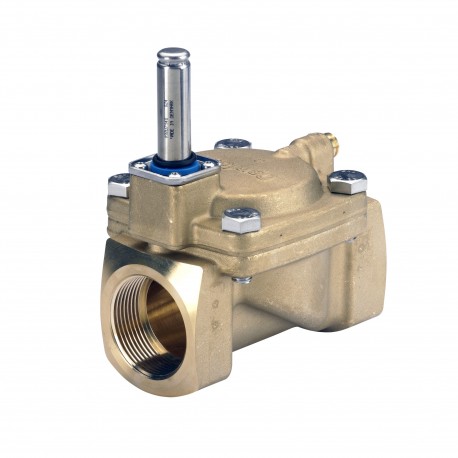

032U6536 DANFOSS CONTROLES INDUSTRIALES EV220B, Solenoid valve, NPT, NC, EPDM
$0.00USD
4267 in stock
Key Specifications
EAN ():5702423031634
Type ():EV220B
Volume ():7.334 Liter
Actuator ():B
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423031634 |
| Type () | EV220B |
| Volume () | 7.334 Liter |
| Actuator () | B |
| Approval () | C UL US LISTEDCEDNVGL-CG-0339GLUKCAcURus recognized |
| Function () | NC |
| Operation () | Servo-operated (diaphragm) |
| Net weight () | 2.973 Kilogram |
| Application () | Open |
| Fluid Group () | 1 |
| Serviceable () | Solenoid valve spare parts |
| CE evaluated () | Yes |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 3.442 Kilogram |
| UL evaluated () | Yes |
| Actuator size () | 13.5 mm |
| Body material () | Brass |
| Product group () | Solenoid valves |
| Seal Material () | EPDM |
| Flow direction () | Single-flow |
| Number of ways () | 2/2 |
| Packing format () | Single pack |
| Connection type () | NPT |
| In scope of WEEE () | Yes |
| Kv value [m³/h] () | 24 m³/h |
| SCIP dossier no. () | b8af40bc-3f7f-4177-bd55-c3503cccfc04 |
| Type designation () | EV220B 40 |
| Orifice size [mm] () | 40 mm |
| Specification key () | EV220B 40B N 112E NC000 |
| Actuator size [in] () | 0.53 in |
| Cv value [gal/min] () | 27.7 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Parts Program name () | EV220B 15 - 50 |
| UK RoHS compliance () | Out of scope |
| Connection material () | Brass |
| Connection standard () | ANSI/ASME B1.20.1 |
| Product accessories () | Solenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Connection size [in] () | 1 1/2 |
| China RoHS compliance () | Out of scope |
| Media recommendations () | Water & Brine |
| EU RoHS exemption clause () | 6(c) |
| Flow direction indicator () | Embossed 1-way arrow |
| Max. test pressure [bar] () | 20 bar |
| Media tolerance comments () | Neutral mediaSteam Max 4 barTemperature: Coil dependent |
| Product Name Description () | Solenoid valve |
| Max media viscosity [cSt] () | 50 cSt |
| Max. test pressure [psig] () | 290 psig |
| Orifice size fraction [in] () | 1 1/2 in |
| Max. Working Pressure [bar] () | 12.4 bar |
| Quantity per packing format () | 1 pc |
| Connection Internal/External () | Internal |
| Max. Working Pressure [psig] () | 180 psig |
| Est. time to open, water [ms] () | 1500 ms |
| Open/close equalizing orifice () | Optional Equalization orifice |
| Ambient temperature max. [°C] () | 50 °C |
| Ambient temperature max. [°F] () | 122 °F |
| Est. time to close, water [ms] () | 4000 ms |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max] () | 9.791 bar |
| Differential pressure [bar] [min] () | 0.3 bar |
| Differential pressure [psi] [max] () | 142 psi |
| Differential pressure [psi] [min] () | 4.351 psi |
| Medium temperature range [°C] [max] () | 120 °C |
| Medium temperature range [°C] [min] () | -10 °C |
| Medium temperature range [°F] [max] () | 248 °F |
| Medium temperature range [°F] [min] () | 14 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid valve, EV220B, Function: NC, NPT, 1 1/2, 24.000 m³/h, EPDM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Media recommendations: Water & Brine, Approval: DNVGL-CG-0339; GL; CE; UKCA; cURus recognized; C UL US LISTED, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
