032U6535

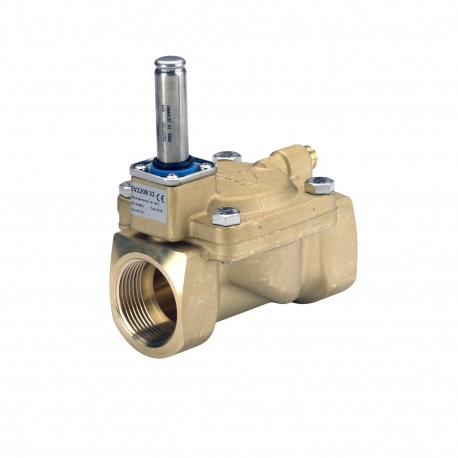

032U6535 DANFOSS CONTROLES INDUSTRIALES EV220B, Solenoid valve, NPT, NC, EPDM
$0.00USD
3511 in stock
Key Specifications
EAN:5702423031528
Actuator:B
Function:NC
Operation:Servo-operated (diaphragm)
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423031528 |
| Actuator | B |
| Function | NC |
| Operation | Servo-operated (diaphragm) |
| Net weight | 1.99 Kg |
| Fluid Group | I |
| Serviceable | Solenoid valve spare parts |
| Gross weight | 2.34 Kg |
| Product name | Solenoid valve |
| Product type | EV220B |
| Actuator size | 13.5 mm |
| Body material | Brass |
| Product Group | Solenoid valves |
| Seal Material | EPDM |
| Flow direction | Single-flow |
| Number of ways | 2/2 |
| Packing format | Single pack |
| Connection type | NPT |
| Valve operation | SERVO-DIAPHRAGM |
| Kv value [m³/h] | 18 m3/h |
| Type designation | EV220B 32 |
| Orifice size [mm] | 32 mm |
| Specification key | EV220B 32B N 114E NC000 |
| Actuator size [in] | 0.53 in |
| Cv value [gal/min] | 20.8 gal/min |
| Parts Program name | EV220B 15 - 50 |
| Connection material | Brass |
| Connection standard | ANSI/ASME B1.20.1 |
| Product accessories | Solenoid valve accessories |
| Actuator system [mm] | 13.5 mm |
| Connection size [in] | 1 1/4 |
| Media recommendations | WaterSteam |
| Flow direction indicator | Embossed 1-way arrow |
| Max. test pressure [bar] | 20 bar |
| Media tolerance comments | Neutral mediaSteam Max 4 barTemperature: Coil dependent |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [psig] | 290 psig |
| Orifice size fraction [in] | 1 1/4 in |
| Max. Working Pressure [bar] | 12.4 bar |
| Quantity per packing format | 1 pc |
| Connection Internal/External | Internal |
| Max. Working Pressure [psig] | 180 psig |
| Est. time to open, water [ms] | 1000 ms |
| Open/close equalizing orifice | Optional Equalization orifice |
| Ambient temperature max. [°C] | 50 °C |
| Ambient temperature max. [°F] | 122 °F |
| Est. time to close, water [ms] | 2500 ms |
| Differential pressure [bar] [Max] | 9.791 bar |
| Differential pressure [bar] [Min] | 0.3 bar |
| Differential pressure [psi] [Max] | 142 psi |
| Differential pressure [psi] [Min] | 4.351 psi |
| Medium temperature range [°C] [Max] | 120 °C |
| Medium temperature range [°C] [Min] | -10 °C |
| Medium temperature range [°F] [Max] | 248 °F |
| Medium temperature range [°F] [Min] | 14 °F |
Product Description
Solenoid Valve, EV220B, Function: NC, NPT, 1 1/4, 18,000 m³/h, EPDM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
