032U6502

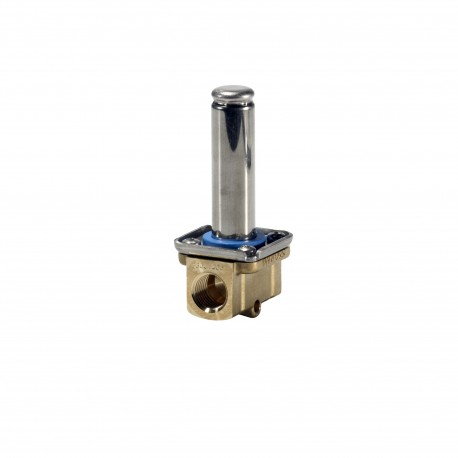

032U6502 DANFOSS CONTROLES INDUSTRIALES Solenoid valve, EV210B
$0.00USD
3075 in stock
Key Specifications
EAN ():5702423031474
Type ():EV210B
Volume ():0.251 Liter
Actuator ():B
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423031474 |
| Type () | EV210B |
| Volume () | 0.251 Liter |
| Actuator () | B |
| Approval () | DNVGL-CG-0339 |
| Function () | NC |
| Operation () | Direct-operated |
| Net weight () | 0.177 Kilogram |
| Application () | Closed and Drain |
| Fluid Group () | 1 |
| Serviceable () | Solenoid valve spare parts |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.186 Kilogram |
| Actuator size () | 13.5 mm |
| Body material () | Brass |
| Product group () | Solenoid valves |
| Seal Material () | FKM |
| Flow direction () | Single-flow |
| Number of ways () | 2/2 |
| Packing format () | Multi pack |
| Connection type () | NPT |
| In scope of WEEE () | Yes |
| Kv value [m³/h] () | 0.08 m³/h |
| Type designation () | EV210B 1.5 |
| Orifice size [mm] () | 1.5 mm |
| Specification key () | EV210B 1.5B N 14F NC000 |
| Actuator size [in] () | 0.53 in |
| Cv value [gal/min] () | 0.09 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Parts Program name () | EV210B |
| UK RoHS compliance () | Out of scope |
| Connection material () | Brass |
| Connection standard () | ANSI/ASME B1.20.1 |
| Product accessories () | Solenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Connection size [in] () | 1/4 |
| China RoHS compliance () | Out of scope |
| Media recommendations () | Oil,Comp.Air,Vacuum |
| EU RoHS exemption clause () | 6(c) |
| Flow direction indicator () | Embossed 1-way arrow |
| Max. test pressure [bar] () | 50 bar |
| Media tolerance comments () | Neutral media |
| Product Name Description () | Solenoid valve |
| Max media viscosity [cSt] () | 50 cSt |
| Max. test pressure [psig] () | 725 psig |
| Orifice size fraction [in] () | 1/16 in |
| Max. Working Pressure [bar] () | 34.5 bar |
| Quantity per packing format () | 20 pc |
| Connection Internal/External () | Internal |
| Max. Working Pressure [psig] () | 500 psig |
| Est. time to open, water [ms] () | 10 ms |
| Ambient temperature max. [°C] () | 50 °C |
| Ambient temperature max. [°F] () | 122 °F |
| Est. time to close, water [ms] () | 20 ms |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max] () | 19.58 bar |
| Differential pressure [bar] [min] () | 0 bar |
| Differential pressure [psi] [max] () | 284 psi |
| Differential pressure [psi] [min] () | 0 psi |
| Medium temperature range [°C] [max] () | 90 °C |
| Medium temperature range [°C] [min] () | -10 °C |
| Medium temperature range [°F] [max] () | 194 °F |
| Medium temperature range [°F] [min] () | 14 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid valve, EV210B, Function: NC, NPT, 1/4, 0.080 m³/h, FKM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Media recommendations: Oil,Comp.Air,Vacuum, Approval: DNVGL-CG-0339, Body material: Brass, Operation: Direct-operated, Number of ways: 2/2
