032U538216

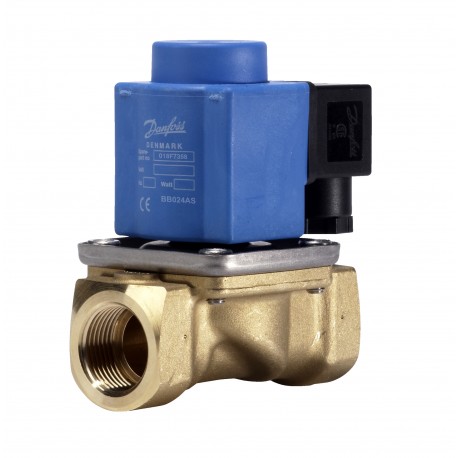

032U538216 DANFOSS CONTROLES INDUSTRIALES Solenoid valve, EV251B
$0.00USD
3881 in stock
Key Specifications
EAN ():5702423292547
Type ():EV251B
Volume ():1.295 Liter
Actuator ():B
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423292547 |
| Type () | EV251B |
| Volume () | 1.295 Liter |
| Actuator () | B |
| Approval () | CEUKCA |
| Function () | NC |
| Coil type () | BB |
| Operation () | Assisted lift operated |
| Net weight () | 0.913 Kilogram |
| Application () | Closed and Drain |
| Coil option () | Clip-on |
| Fluid Group () | 1 |
| Serviceable () | Solenoid valve spare parts |
| CE evaluated () | Yes |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.975 Kilogram |
| Actuator size () | 13.5 mm |
| Body material () | Brass |
| Product group () | Solenoid valves |
| Seal Material () | NBR |
| Frequency [Hz] () | 50 Hz |
| Number of ways () | 2/2 |
| Packing format () | Multi pack |
| Connection type () | G |
| In scope of WEEE () | Yes |
| Kv value [m³/h] () | 3.5 m³/h |
| SCIP dossier no. () | 1b9c4d1e-3db1-4cbf-b890-a2f5466a0ea9 |
| Type designation () | EV251B 18 |
| Orifice size [mm] () | 18 mm |
| Specification key () | EV251B 18B G 34N NC688 BB024AS |
| Actuator size [in] () | 0.53 in |
| Cv value [gal/min] () | 4.05 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Connection material () | Brass |
| Connection standard () | ISO 228-1 |
| Enclosure rating IP () | IP65 |
| Product accessories () | Solenoid coil accessoriesSolenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Connection size [in] () | 3/4 |
| China RoHS compliance () | Out of scope |
| Electrical connection () | Spade DIN 43650-A |
| Media recommendations () | Water,Brine,Oil,Air |
| Supply voltage [V] AC () | 24 V |
| EU RoHS exemption clause () | 6(c) |
| Max. test pressure [bar] () | 15 bar |
| Media tolerance comments () | Neutral media |
| Product Name Description () | Solenoid valve |
| Max media viscosity [cSt] () | 50 cSt |
| Max. test pressure [psig] () | 217.5 psig |
| Orifice size fraction [in] () | 3/4 in |
| Power consumption [W] 50Hz () | 11 W |
| Max. Working Pressure [bar] () | 10 bar |
| Quantity per packing format () | 12 pc |
| Supply voltage 50Hz Max [V] () | 24 V |
| Connection Internal/External () | Internal |
| Max. Working Pressure [psig] () | 145 psig |
| Est. time to open, water [ms] () | 200 ms |
| Ambient temperature max. [°C] () | 80 °C |
| Ambient temperature max. [°F] () | 176 °F |
| Est. time to close, water [ms] () | 500 ms |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max] () | 10 bar |
| Differential pressure [bar] [min] () | 0 bar |
| Differential pressure [psi] [max] () | 145 psi |
| Differential pressure [psi] [min] () | 0 psi |
| Medium temperature range [°C] [max] () | 70 °C |
| Medium temperature range [°C] [min] () | -10 °C |
| Medium temperature range [°F] [max] () | 158 °F |
| Medium temperature range [°F] [min] () | 14 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid valve, EV251B, Function: NC, G, 3/4, 3.500 m³/h, NBR
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Media recommendations: Water,Brine,Oil,Air, Approval: CE; UKCA, Body material: Brass, Operation: Assisted lift operated, Number of ways: 2/2
