032U1279

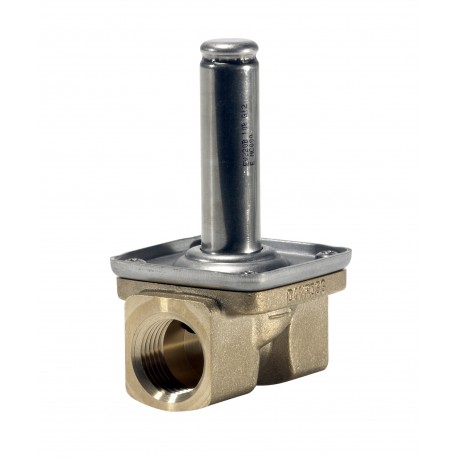

032U1279 DANFOSS CONTROLES INDUSTRIALES EV220B, Solenoid valve, G, NC, EPDM
$0.00USD
4582 in stock
Key Specifications
EAN ():5702423228232
Type ():EV220B
Volume ():0.253 Liter
Actuator ():B
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423228232 |
| Type () | EV220B |
| Volume () | 0.253 Liter |
| Actuator () | B |
| Function () | NC |
| Operation () | Servo-operated (diaphragm) |
| Net weight () | 0.286 Kg |
| Application () | Open |
| Fluid Group () | 1 |
| Serviceable () | Solenoid valve spare parts |
| Gross weight () | 0.309 Kg |
| Actuator size () | 13.5 mm |
| Body material () | Brass |
| Product group () | Solenoid valves |
| Seal Material () | EPDM |
| Flow direction () | Single-flow |
| Number of ways () | 2/2 |
| Packing format () | Multi pack |
| Connection type () | G |
| Kv value [m³/h] () | 2.33 m³/h |
| SCIP dossier no. () | f440c2c1-98fa-405b-9256-d9b24590a97e |
| Type designation () | EV220B 11.5 |
| Orifice size [mm] () | 11.5 mm |
| Specification key () | EV220B 11.5B G 12E NC000 |
| Actuator size [in] () | 0.53 in |
| Cv value [gal/min] () | 2.69 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Parts Program name () | EV220B 6 - 22 |
| Connection material () | Brass |
| Connection standard () | ISO 228-1 |
| Product accessories () | Solenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Connection size [in] () | 1/2 |
| Media recommendations () | Water & Brine |
| Flow direction indicator () | Embossed 1-way arrow |
| Max. test pressure [bar] () | 15 bar |
| Media tolerance comments () | Neutral media |
| Product Name Description () | Solenoid valve |
| Max media viscosity [cSt] () | 50 cSt |
| Max. test pressure [psig] () | 217.5 psig |
| Orifice size fraction [in] () | 3/8 in |
| Max. Working Pressure [bar] () | 10 bar |
| Quantity per packing format () | 20 pc |
| Connection Internal/External () | Internal |
| Max. Working Pressure [psig] () | 145 psig |
| Ambient temperature max. [°C] () | 80 °C |
| Ambient temperature max. [°F] () | 176 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max] () | 10 bar |
| Differential pressure [bar] [min] () | 0.1 bar |
| Differential pressure [psi] [max] () | 145 psi |
| Differential pressure [psi] [min] () | 1.45 psi |
| Medium temperature range [°C] [max] () | 100 °C |
| Medium temperature range [°C] [min] () | -30 °C |
| Medium temperature range [°F] [max] () | 212 °F |
| Medium temperature range [°F] [min] () | -22 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid valve, EV220B, Function: NC, G, 1/2, 2.330 m³/h, EPDM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
