032L8097

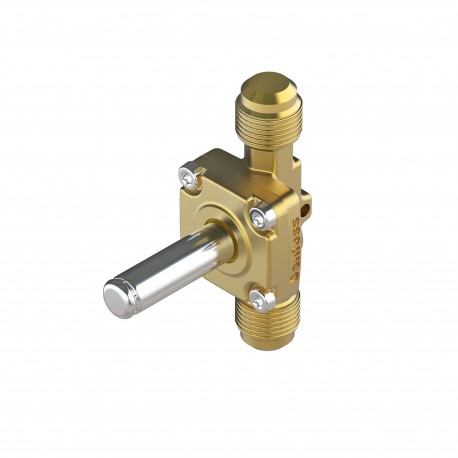

032L8097 DANFOSS REFRIGERATION EVO 103 Valve Flare 5/8in Multi 12
$0.00USD
4912 in stock
Key Specifications
EAN ():5702428950404
Coil ():Yes
Type ():EVO 103
Volume ():0.878 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428950404 |
| Coil () | Yes |
| Type () | EVO 103 |
| Volume () | 0.878 Liter |
| Approval () | EAC |
| Function () | NC |
| Coil type () | BE230AS |
| Direction () | Straightway |
| Net weight () | 0.488 Kg |
| Serviceable () | No |
| Gross weight () | 0.768 Kg |
| MinODP [bar] () | 0.03 bar |
| MinODP [psi] () | 0.44 psi |
| Refrigerants () | R1234yfR125R134aR152aR22R22/R407CR23R290R32R404AR407AR407CR407FR410AR448AR449AR450AR452AR600aR1234ze(E)R404A/R507AR507A |
| MOPD[bar/psi] () | Coil Dependend |
| Product group () | Solenoid valves |
| Frequency [Hz] () | 50 Hz |
| Packing format () | Multi pack |
| Coil connection () | Cap |
| Inlet size [in] () | 5/8 in |
| Inlet size [mm] () | 16 mm |
| Valve operation () | Servo-diaphragm |
| Kv value [m³/h] () | 2.2 m³/h |
| Outlet size [in] () | 5/8 in |
| Outlet size [mm] () | 16 mm |
| SCIP dossier no. () | 29cb9379-b48f-46b9-9360-0837e10ce0bf |
| Type designation () | Solenoid valve |
| Orifice size [mm] () | 10 mm |
| Power consumption () | 11-12 W |
| Cv value [gal/min] () | 2.6 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| MaxOPD[bar] 10W AC () | 38 bar |
| MaxOPD[psi] 10W AC () | 550 psi |
| Parts Program name () | EVO |
| Ambient temperature () | -40 - 80 °C |
| Enclosure rating IP () | IP20 |
| Product accessories () | No |
| Actuator system [mm] () | 13.5 mm |
| Inlet connection type () | Flare |
| MaxOPD[bar] coil BJ/BX () | 38 bar |
| MaxOPD[psi] coil BJ/BX () | 550 psi |
| Outlet connection type () | Flare |
| Manual operation option () | No |
| Lubricants compatibility () | ABPAGPAOPOEPVEMO |
| Product Name Description () | Solenoid valve |
| SCIP dossier product name () | EVR 10-22/EVO 103/EVRC/EVRH 10-20 (NC) |
| Power consumption [W] 50Hz () | 12 W |
| Max. Working Pressure [bar] () | 45.2 bar |
| Quantity per packing format () | 12 pc |
| Supply voltage 50Hz Max [V] () | 230 V |
| Supply voltage 50Hz Min [V] () | 220 V |
| Supply voltage [V] AC [max] () | 230 V |
| Supply voltage [V] AC [min] () | 220 V |
| Max. Working Pressure [psig] () | 655 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 105 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 221 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°F] [max] () | 175 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid valve, EVO 103
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Function: NC, Inlet connection type: Flare, Outlet connection type: Flare
