In Stock Hot Product
032L8090

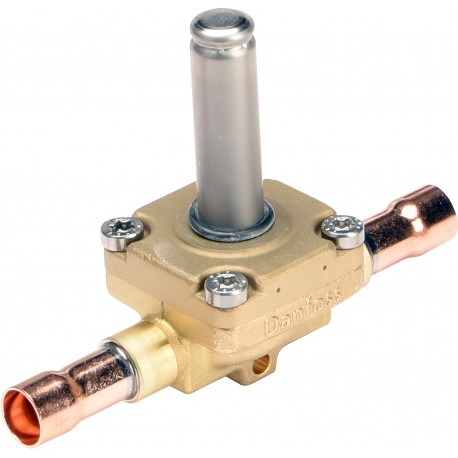

032L8090 DANFOSS REFRIGERATION Solenoid valve
$0.00USD
4747 in stock
Key Specifications
EAN ():5702428952514
Coil ():No
Type ():EVR 10
Volume ():0.898 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428952514 |
| Coil () | No |
| Type () | EVR 10 |
| Volume () | 0.898 Liter |
| Approval () | ULEACLLC CDC EURO-TYSK |
| Function () | NO |
| Direction () | Straightway |
| Net weight () | 0.394 Kg |
| Fluid Group () | 12 |
| Serviceable () | Solenoid valve spare parts |
| Gross weight () | 0.473 Kg |
| MinODP [bar] () | 0.03 bar |
| MinODP [psi] () | 0.44 psi |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R125R134aR404AR407AR407FR410AR417AR448AR449AR450AR452AR513AR407HR413AR422AR422BR422DR438AR447AR449BR463AR513BR515AR515BR442AR447BR512AR22R407CR455AR1234yfR1234ze(E)R152aR32R444BR452BR454AR454BR454CR507AR516A |
| Product group () | Solenoid valves |
| Packing format () | Multi pack |
| Inlet size [in] () | 1/2 in |
| Inlet size [mm] () | 12 mm |
| Valve operation () | Servo-diaphragm |
| Kv value [m³/h] () | 2.2 m³/h |
| Outlet size [in] () | 1/2 in |
| Outlet size [mm] () | 12 mm |
| SCIP dossier no. () | 576f0b3e-94ae-4820-ba3a-63004b4bb908 |
| Type designation () | Solenoid valve |
| Orifice size [mm] () | 10 mm |
| Cv value [gal/min] () | 2.6 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| MaxOPD[bar] 10W AC () | 21 bar |
| MaxOPD[bar] 20W DC () | 21 bar |
| MaxOPD[psi] 10W AC () | 305 psi |
| MaxOPD[psi] 20W DC () | 305 psi |
| Parts Program name () | EVR |
| Ambient temperature () | -40 - 80 °C |
| Product accessories () | Solenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Inlet connection type () | Flare |
| Outlet connection type () | Flare |
| Manual operation option () | No |
| Lubricants compatibility () | ABPAGPAOPOEPVEMO |
| Product Name Description () | Solenoid valve |
| UL approved refrigerants () | R125R134aR22R404AR407AR407CR407FR407HR410AR413AR417AR422AR422BR422DR438AR442AR447AR447BR448AR449AR449BR450AR452AR463AR507AR512AR513AR513BR515AR515B |
| SCIP dossier product name () | EVR 10-22 (NO) |
| Max. Working Pressure [bar] () | 45.2 bar |
| Quantity per packing format () | 12 pc |
| Max. Working Pressure [psig] () | 655 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 105 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 221 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
EVR 10 Valve flare 1/2in no Multi 12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Kv value [m³/h]: 2.200, Packing format: Multi pack
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
