032L4083

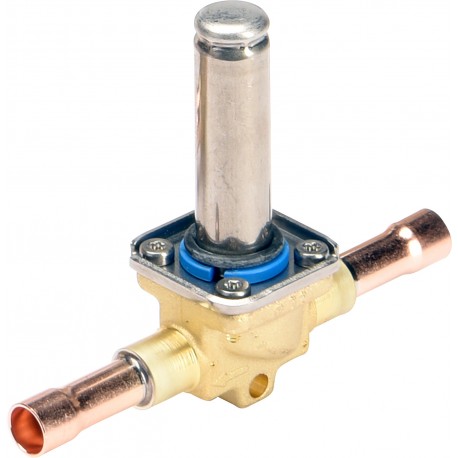

032L4083 DANFOSS REFRIGERATION Solenoid valve, EVR 6
$0.00USD
4926 in stock
Key Specifications
EAN ():5702428950497
Coil ():Yes
Type ():EVR 6
Volume ():0.924 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428950497 |
| Coil () | Yes |
| Type () | EVR 6 |
| Volume () | 0.924 Liter |
| Approval () | EAC |
| Function () | NC |
| Coil type () | BE230AS |
| Direction () | Straightway |
| Net weight () | 0.533 Kilogram |
| Fluid Group () | 12 |
| Serviceable () | Solenoid valve spare parts |
| Gross weight () | 0.551 Kilogram |
| MinODP [bar] () | 0.03 bar |
| MinODP [psi] () | 0.44 psi |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R1234yfR1234ze(E)R125R134aR152aR22R290R32R404AR407AR407CR407FR407HR410AR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR507AR512AR513AR513BR515AR515BR516AR600R600a |
| Body material () | Brass |
| MOPD[bar/psi] () | Coil Dependend |
| Product group () | Solenoid valves |
| Frequency [Hz] () | 50 Hz |
| Packing format () | Multi pack |
| Coil connection () | Connection Box |
| Inlet size [in] () | 3/8 in |
| Valve operation () | Servo-diaphragm |
| Kv value [m³/h] () | 1 m³/h |
| Outlet size [in] () | 3/8 in |
| SCIP dossier no. () | 52f475eb-6026-442a-932e-863e4660eac8 |
| Type designation () | Solenoid valve, Solder |
| Orifice size [mm] () | 6 mm |
| Power consumption () | 11-12 W |
| Cv value [gal/min] () | 1.15 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| MaxOPD[bar] 10W AC () | 38 bar |
| MaxOPD[bar] 20W DC () | 28 bar |
| MaxOPD[psi] 10W AC () | 550 psi |
| MaxOPD[psi] 20W DC () | 406 psi |
| Parts Program name () | EVR |
| UK RoHS compliance () | Out of scope |
| Ambient temperature () | -40 - 80 °C |
| Enclosure rating IP () | IP67 |
| Product accessories () | Solenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| China RoHS compliance () | Yes exceed limitations |
| Inlet connection type () | Solder, ODF |
| MaxOPD[bar] coil BJ/BX () | 38 bar |
| MaxOPD[psi] coil BJ/BX () | 550 psi |
| Outlet connection type () | Solder, ODF |
| MWP [bar] PED compliant () | 49 bar |
| Manual operation option () | No |
| Medium temp. range note () | Defrost max 130°C/265°F |
| EU RoHS exemption clause () | 6(a)6(c) |
| Lubricants compatibility () | ABMOPAGPAOPOEPVE |
| Product Name Description () | Solenoid valve |
| UL approved refrigerants () | R290R600R600a |
| SCIP dossier product name () | EVR 2-8/EVO 100-102 |
| Power consumption [W] 50Hz () | 12 W |
| Max. Working Pressure [bar] () | 45.2 bar |
| Quantity per packing format () | 12 pc |
| Supply voltage 50Hz Max [V] () | 230 V |
| Supply voltage 50Hz Min [V] () | 220 V |
| Supply voltage [V] AC [max] () | 230 V |
| Supply voltage [V] AC [min] () | 220 V |
| Max. Working Pressure [psig] () | 655 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 105 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 221 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°F] [max] () | 175 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid valve, EVR 6, Solder, ODF, 3/8 in, Function: NC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Body material: Brass, Kv value [m³/h]: 1.00, Packing format: Multi pack
