032L1227

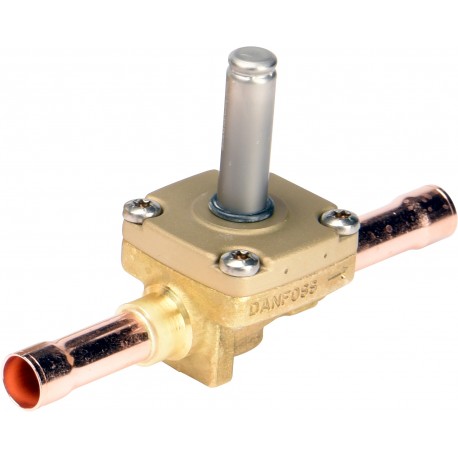

032L1227 DANFOSS REFRIGERATION Solenoid valve
$0.00USD
4296 in stock
Key Specifications
EAN ():5702428952460
Coil ():No
Type ():EVR 15
Volume ():3.249 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428952460 |
| Coil () | No |
| Type () | EVR 15 |
| Volume () | 3.249 Liter |
| Approval () | ULEACLLC CDC EURO-TYSK |
| Function () | NC |
| Direction () | Straightway |
| Net weight () | 0.644 Kg |
| Fluid Group () | 12 |
| Serviceable () | Solenoid valve spare parts |
| Gross weight () | 0.897 Kg |
| MinODP [bar] () | 0.03 bar |
| MinODP [psi] () | 0.44 psi |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R1234yfR125R134aR152aR22R290R32R404AR407AR407CR407FR410AR417AR448AR449AR450AR452AR600R600aR513AR1234ze(E)R407HR413AR422AR422BR422DR438AR444BR447AR449BR452BR454BR454CR455AR463AR513BR515AR515BR516AR442AR447BR512AR454AR507A |
| MOPD[bar/psi] () | Coil Dependend |
| Product group () | Solenoid valves |
| Packing format () | Multi pack |
| Inlet size [mm] () | 16 mm |
| Valve operation () | Servo-diaphragm |
| Kv value [m³/h] () | 3.3 m³/h |
| Outlet size [mm] () | 16 mm |
| SCIP dossier no. () | 29cb9379-b48f-46b9-9360-0837e10ce0bf |
| Type designation () | Solenoid valve, Solder |
| Orifice size [mm] () | 14 mm |
| Cv value [gal/min] () | 3.8 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| MaxOPD[bar] 10W AC () | 38 bar |
| MaxOPD[bar] 20W DC () | 20 bar |
| MaxOPD[psi] 10W AC () | 550 psi |
| MaxOPD[psi] 20W DC () | 290 psi |
| Parts Program name () | EVR |
| Ambient temperature () | -40 - 80 °C |
| Product accessories () | Solenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Inlet connection type () | Solder, ODF |
| MaxOPD[bar] coil BJ/BX () | 38 bar |
| MaxOPD[psi] coil BJ/BX () | 550 psi |
| Outlet connection type () | Solder, ODF |
| Manual operation option () | Yes |
| Medium temp. range note () | Defrost max 130°C/265°F |
| Lubricants compatibility () | ABPAGPAOPOEPVEMO |
| Product Name Description () | Solenoid valve |
| UL approved refrigerants () | R125R134aR152aR22R404AR407AR407CR407FR407HR410AR413AR417AR422AR422BR422DR438AR442AR447AR447BR448AR449AR449BR450AR452AR455AR463AR507AR512AR513AR513BR515AR515BR516A |
| SCIP dossier product name () | EVR 10-22/EVO 103/EVRC/EVRH 10-20 (NC) |
| Max. Working Pressure [bar] () | 45.2 bar |
| Quantity per packing format () | 6 pc |
| Max. Working Pressure [psig] () | 655 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 105 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 221 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°F] [max] () | 175 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
EVR 15 VALVE ODF-ODF 16MM MULTI 6
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Kv value [m³/h]: 3.300, Packing format: Multi pack
