032L1111

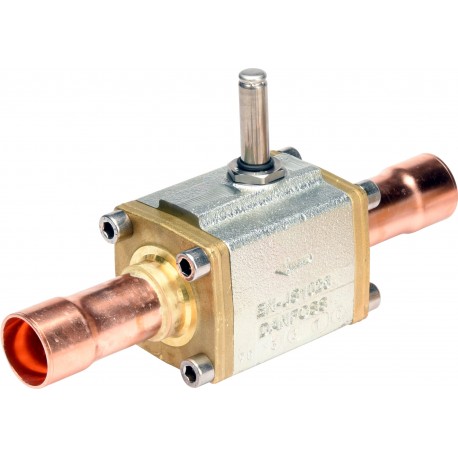

032L1111 DANFOSS REFRIGERATION Solenoid valve
$0.00USD
4477 in stock
Key Specifications
EAN ():5702428943123
Coil ():No
Type ():EVR 40
Volume ():7.56 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428943123 |
| Coil () | No |
| Type () | EVR 40 |
| Volume () | 7.56 Liter |
| Approval () | EACLLC CDC EURO-TYSKUL |
| Function () | NC |
| Direction () | Straightway |
| Net weight () | 4.592 Kilogram |
| Serviceable () | Solenoid valve spare parts |
| Gross weight () | 5.032 Kilogram |
| MinODP [bar] () | 0.2 bar |
| MinODP [psi] () | 2.9 psi |
| Refrigerants () | R125R134aR22R404AR407AR407CR407FR410AR448AR449AR450AR452AR507AR513AR515B |
| UL evaluated () | Yes |
| Body material () | Cast iron |
| MOPD[bar/psi] () | Coil Dependent |
| Product group () | Solenoid valves |
| Packing format () | Single pack |
| Inlet size [in] () | 2 1/8 in |
| Valve operation () | Servo-piston |
| Kv value [m³/h] () | 24.2 m³/h |
| Outlet size [in] () | 2 1/8 in |
| SCIP dossier no. () | 6a76eb5e-6ca8-43d3-be03-8320fd28438e |
| Type designation () | Solenoid valve, Solder |
| Contain batteries () | No |
| Orifice size [mm] () | 25.4 mm |
| Cv value [gal/min] () | 28 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| MaxOPD[bar] 10W AC () | 38 bar |
| MaxOPD[bar] 20W DC () | 17 bar |
| MaxOPD[psi] 10W AC () | 550 psi |
| MaxOPD[psi] 20W DC () | 246 psi |
| Parts Program name () | EVR |
| UK RoHS compliance () | Out of scope |
| Ambient temperature () | -40 - 80 °C |
| Product accessories () | Solenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| China RoHS compliance () | Yes exceed limitations |
| Inlet connection type () | Solder, ODF |
| MaxOPD[bar] coil BJ/BX () | 31 bar |
| MaxOPD[psi] coil BJ/BX () | 450 psi |
| Outlet connection type () | Solder, ODF |
| Manual operation option () | Yes |
| EU RoHS exemption clause () | 6(a)6(c) |
| Lubricants compatibility () | ABMOPAGPAOPOEPVE |
| Product Name Description () | Solenoid valve |
| UL approved refrigerants () | R125R134aR22R404AR407AR407CR407FR410AR448AR449AR450AR452AR507AR513AR515B |
| Max. Working Pressure [bar] () | 45.2 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 655 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 105 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 221 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°F] [max] () | 175 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
Product Description
EVR 40 Valve ODF-ODF 2 1/8in Singlep.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Body material: Cast iron, Kv value [m³/h]: 24.2, Packing format: Single pack
