032G1003

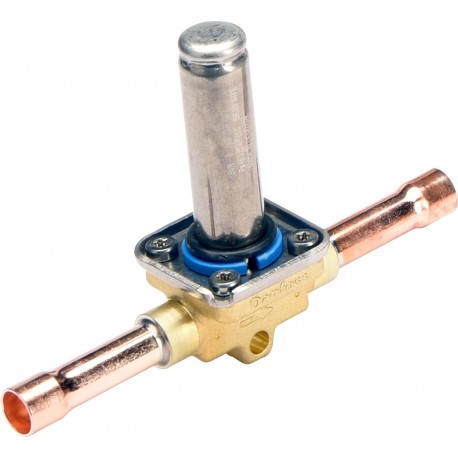

032G1003 DANFOSS REFRIGERATION Solenoid valve
$0.00USD
4895 in stock
Key Specifications
EAN ():5702428064439
Coil ():No
Type ():EVR 3
Volume ():0.897 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428064439 |
| Coil () | No |
| Type () | EVR 3 |
| Volume () | 0.897 Liter |
| Approval () | EACLLC CDC TYSK |
| Function () | NC |
| Direction () | Straightway |
| Net weight () | 0.172 Kg |
| Serviceable () | Solenoid valve spare parts |
| Gross weight () | 0.229 Kg |
| MinODP [bar] () | 0 bar |
| Refrigerants () | R1234yfR125R134aR152aR22R290R32R404AR407AR407CR407FR410AR417AR448AR449AR450AR452AR600R600aR1234ze(E)R407HR413AR422AR422BR422DR438AR444BR447AR449BR452BR454BR454CR455AR463AR513AR513BR515AR515BR516AR442AR447BR512AR454AR507A |
| MOPD[bar/psi] () | Coil Dependend |
| Product group () | Solenoid valves |
| Packing format () | Multi pack |
| Inlet size [in] () | 3/8 in |
| Valve operation () | Direct |
| Kv value [m³/h] () | 0.27 m³/h |
| Outlet size [in] () | 3/8 in |
| Type designation () | Solenoid valve, Solder |
| Orifice size [mm] () | 3.3 mm |
| Cv value [gal/min] () | 0.31 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| MaxOPD[bar] 10W AC () | 38 bar |
| MaxOPD[psi] 10W AC () | 550 psi |
| Parts Program name () | EVR |
| Ambient temperature () | -40 - Coil dependend |
| Product accessories () | Solenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Inlet connection type () | Solder, ODF |
| Outlet connection type () | Solder, ODF |
| Manual operation option () | No |
| Medium temp. range note () | Defrost max 130°C/265°F |
| Lubricants compatibility () | ABPAGPAOPOEPVEMO |
| Product Name Description () | Solenoid valve |
| Max. Working Pressure [bar] () | 35 bar |
| Quantity per packing format () | 24 pc |
| Max. Working Pressure [psig] () | 500 psig |
| Matr grp for sales restriction () | Flammable agreement B (RC,CC) |
| Medium temperature range [°C] [max] () | 105 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 221 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
EVR 3 Valve ODF-ODF 3/8in Multi 24
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Kv value [m³/h]: 0.270, Packing format: Multi pack
