032F9513

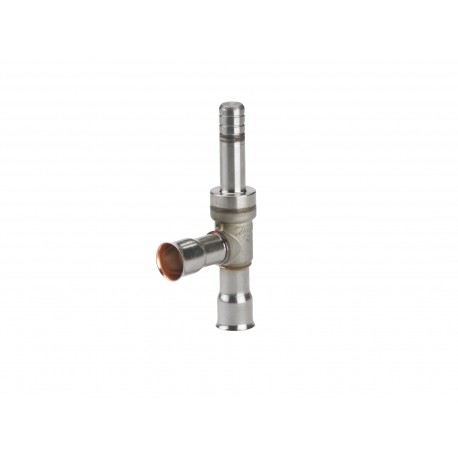

032F9513 DANFOSS REFRIGERATION EVUL 5 Solenoid valve Multi 16
$0.00USD
3019 in stock
Key Specifications
EAN ():5702428994897
Coil ():No
Type ():EVUL 5
Volume ():0.821 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428994897 |
| Coil () | No |
| Type () | EVUL 5 |
| Volume () | 0.821 Liter |
| Approval () | EACLLC CDC TYSKUR |
| Function () | NC |
| Direction () | Angleway |
| Net weight () | 0.071 Kg |
| Serviceable () | No |
| Gross weight () | 0.102 Kg |
| MinODP [bar] () | 0.02 bar |
| Refrigerants () | R1234yfR1270R134aR22/R407CR23R290R32R407AR407FR407HR410AR422BR422DR438AR444BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR513AR513BR515AR515BR516AR600R600aR744R1233zd(E)R1234ze(E)R404A/R507A |
| MOPD[bar/psi] () | Coil Dependend |
| Product group () | Solenoid valves |
| Packing format () | Multi pack |
| Inlet size [in] () | 3/8 in |
| Kv value [m³/h] () | 0.65 m³/h |
| Outlet size [in] () | 3/8 in |
| SCIP dossier no. () | 16ab3d9e-ddf2-4401-873a-972ca0baafcf |
| Type designation () | Solenoid valve, Solder |
| Cv value [gal/min] () | 0.8 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Ambient temperature () | -40 - Coil dependend |
| Product accessories () | Solenoid valve accessories |
| Actuator system [mm] () | 9 mm |
| Inlet connection type () | Solder, ODF |
| Outlet connection type () | Solder, ODF |
| Manual operation option () | No |
| Lubricants compatibility () | ABPAGPAOPOEPVEMO |
| Product Name Description () | Solenoid valve |
| UL approved refrigerants () | R1233zd(E)R134aR22R23R404AR407AR407CR407FR407HR410AR422BR422DR438AR448AR449AR449BR450AR452AR463AR507AR513AR513BR515AR515BR516AR744 |
| Max. Working Pressure [bar] () | 90 bar |
| Quantity per packing format () | 16 pc |
| Max. Working Pressure [psig] () | 1305 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 105 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 221 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid valve, EVUL 5, Solder, ODF, 3/8 in, Function: NC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Kv value [m³/h]: 0.650, Packing format: Multi pack
