In Stock Hot Product
032F8204

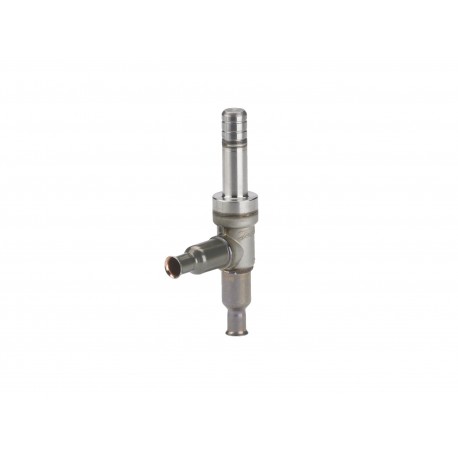

032F8204 DANFOSS REFRIGERATION Solenoid valve, EVUL 4
$0.00USD
3371 in stock
Key Specifications
EAN:5702428406741
Coil:No
Approval:EACLLC CDC TYSKUR
Function:NC
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428406741 |
| Coil | No |
| Approval | EACLLC CDC TYSKUR |
| Function | NC |
| Direction | Angleway |
| Net weight | 0 Kg |
| Gross weight | 0.07 Kg |
| MinODP [bar] | 0.02 bar |
| Product name | Solenoid valve |
| Product type | EVUL 4 |
| Refrigerants | R134aR22/R407CR23R404A/R507R407AR410AR744 |
| MOPD[bar/psi] | COIL DEPENDEND |
| Product Group | Solenoid valves |
| Packing format | Industrial pack |
| Inlet size [in] | 1/4 IN |
| Kv value [m³/h] | 0.5 m3/h |
| Outlet size [in] | 1/4 IN |
| Type designation | Solenoid valve, Solder |
| Cv value [gal/min] | 0.6 gal/min |
| Ambient temperature | -40 - COIL DEPENDEND |
| Product family name | EVUL |
| Actuator system [mm] | 9 mm |
| Inlet connection type | SOLDER, ODF |
| Outlet connection type | SOLDER, ODF |
| Manual operation option | No |
| System line application | Discharge lineLiquid feed lineLiquid lineSuction line |
| Max. Working Pressure [bar] | 90 bar |
| Quantity per packing format | 40 pc |
| Max. Working Pressure [psig] | 1305 psig |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
Product Description
Solenoid valve, EVUL 4, Solder, ODF, 1/4 in, Function: NC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
