032F8116

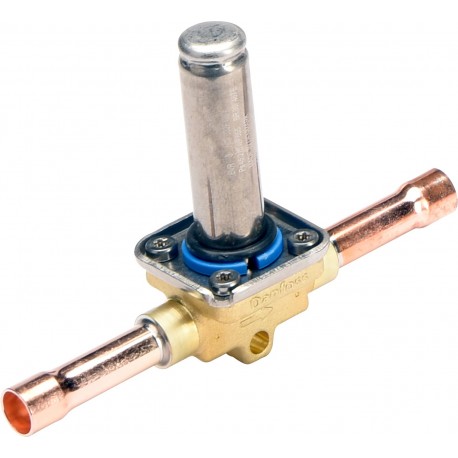

032F8116 DANFOSS REFRIGERATION Solenoid valve
$0.00USD
4822 in stock
Key Specifications
EAN:5702428093583
Coil:No
Approval:EACLLC CDC TYSK
Function:NC
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428093583 |
| Coil | No |
| Approval | EACLLC CDC TYSK |
| Function | NC |
| Direction | Straightway |
| Net weight | 0.19 Kg |
| Gross weight | 0.24 Kg |
| MinODP [bar] | 0 bar |
| Product name | Solenoid valve |
| Product type | EVR 3 |
| Refrigerants | R1234yfR1234zeR125R134aR152aR22R290R32R404AR407AR407CR407FR410AR417AR448AR449AR450AR452AR507R600R600aR513A |
| MOPD[bar/psi] | COIL DEPENDEND |
| Product Group | Solenoid valves |
| Packing format | Multi pack |
| Inlet size [in] | 3/8 IN |
| Inlet size [mm] | 10 mm |
| Valve operation | DIRECT |
| Kv value [m³/h] | 0.27 m3/h |
| Outlet size [in] | 3/8 IN |
| Outlet size [mm] | 10 mm |
| Type designation | Solenoid valve |
| Identical product | 032F8117 |
| Orifice size [mm] | 3.3 mm |
| Cv value [gal/min] | 0.31 gal/min |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| Parts Program name | EVR |
| Ambient temperature | -40 - 80 °C |
| Product family name | EVR |
| Actuator system [mm] | 13.5 mm |
| Inlet connection type | FLARE |
| Outlet connection type | FLARE |
| Manual operation option | No |
| Medium temp. range note | Defrost max 130°C/265°F |
| System line application | Discharge lineHot gas defrost drain lineHot gas defrost lineLiquid feed lineLiquid lineMain hot gas defrost lineSuction line |
| Max. Working Pressure [bar] | 45.2 bar |
| Quantity per packing format | 24 pc |
| Max. Working Pressure [psig] | 655 psig |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
Product Description
EVR 3 Valve Flare 3/8in Multi 24
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
