032F8108

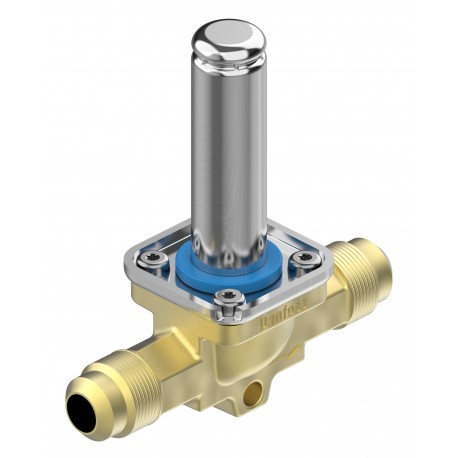

032F8108 DANFOSS REFRIGERATION Solenoid valve
$0.00USD
3806 in stock
Key Specifications
EAN ():5702428093200
Coil ():No
Type ():EVR 3
Volume ():0.45 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428093200 |
| Coil () | No |
| Type () | EVR 3 |
| Volume () | 0.45 Liter |
| Approval () | EACLLC CDC TYSK |
| Function () | NC |
| Direction () | Straightway |
| Net weight () | 0.179 Kg |
| Serviceable () | Solenoid valve spare parts |
| Gross weight () | 0.193 Kg |
| MinODP [bar] () | 0 bar |
| Refrigerants () | R125R134aR404AR407AR407FR410AR417AR448AR449AR450AR452AR407HR413AR422AR422BR422DR438AR447AR449BR463AR513AR513BR515AR515BR442AR447BR512AR22R407CR455AR507A |
| MOPD[bar/psi] () | Coil Dependend |
| Product group () | Solenoid valves |
| Packing format () | Industrial pack |
| Inlet size [in] () | 1/4 in |
| Inlet size [mm] () | 6 mm |
| Valve operation () | Direct |
| Kv value [m³/h] () | 0.27 m³/h |
| Outlet size [in] () | 1/4 in |
| Outlet size [mm] () | 6 mm |
| SCIP dossier no. () | 7d4d3ef3-e2d2-40aa-a84a-0a3286c91c98 |
| Type designation () | Solenoid valve |
| Identical product () | 032F8107 |
| Orifice size [mm] () | 3.3 mm |
| Cv value [gal/min] () | 0.31 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| MaxOPD[bar] 10W AC () | 38 bar |
| MaxOPD[psi] 10W AC () | 550 psi |
| Parts Program name () | EVR |
| Ambient temperature () | -40 - Coil dependend |
| Product accessories () | Solenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Inlet connection type () | Flare |
| Outlet connection type () | Flare |
| Manual operation option () | No |
| Medium temp. range note () | Defrost max 130°C/265°F |
| Lubricants compatibility () | ABPAGPAOPOEPVEMO |
| Product Name Description () | Solenoid valve |
| SCIP dossier product name () | EVR 2-8/EVO 100-102 (NC) |
| Max. Working Pressure [bar] () | 45.2 bar |
| Quantity per packing format () | 50 pc |
| Max. Working Pressure [psig] () | 655 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 105 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 221 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
EVR 3 Valve Flare 1/4in I-pack 50.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Kv value [m³/h]: 0.270, Packing format: Industrial pack
