032F805931

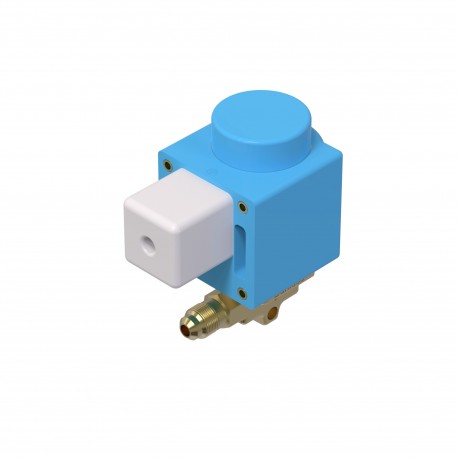

032F805931 DANFOSS REFRIGERATION EVO 100 Valve Flare 1/4in Multi 24
$0.00USD
3785 in stock
Key Specifications
EAN ():5702428093163
Coil ():Yes
Type ():EVO 100
Volume ():0.879 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428093163 |
| Coil () | Yes |
| Type () | EVO 100 |
| Volume () | 0.879 Liter |
| Approval () | EACLLC CDC TYSK |
| Function () | NC |
| Coil type () | BE230AS |
| Direction () | Straightway |
| Net weight () | 0.445 Kilogram |
| Serviceable () | No |
| Gross weight () | 0.502 Kilogram |
| MinODP [bar] () | 0 bar |
| Refrigerants () | R1234yfR1234ze(E)R125R134aR152aR22/R407CR23R290R32R404AR404A/R507AR407AR407CR407FR410AR448AR449AR450AR452AR507AR600a |
| MOPD[bar/psi] () | 25 bar |
| Product group () | Solenoid valves |
| Frequency [Hz] () | 50 Hz |
| Packing format () | Multi pack |
| Coil connection () | Cap |
| Inlet size [in] () | 1/4 in |
| Inlet size [mm] () | 6 mm |
| Kv value [m³/h] () | 0.16 m³/h |
| Outlet size [in] () | 1/4 in |
| Outlet size [mm] () | 6 mm |
| SCIP dossier no. () | 52f475eb-6026-442a-932e-863e4660eac8 |
| Type designation () | Solenoid valve |
| Orifice size [mm] () | 2.3 mm |
| Power consumption () | 10 W |
| Cv value [gal/min] () | 0.18 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| MaxOPD[bar] 10W AC () | 25 bar |
| UK RoHS compliance () | Out of scope |
| Ambient temperature () | -40 - 80 °C |
| Enclosure rating IP () | IP20 |
| Product accessories () | No |
| Actuator system [mm] () | 13.5 mm |
| China RoHS compliance () | Out of scope |
| Inlet connection type () | Flare |
| Outlet connection type () | Flare |
| Manual operation option () | No |
| EU RoHS exemption clause () | 6(a)6(c) |
| Lubricants compatibility () | ABMOPAGPAOPOEPVE |
| Product Name Description () | Solenoid valve |
| SCIP dossier product name () | EVR 2-8/EVO 100-102 |
| Power consumption [W] 50Hz () | 12 W |
| Max. Working Pressure [bar] () | 45.2 bar |
| Quantity per packing format () | 24 pc |
| Supply voltage 50Hz Max [V] () | 230 V |
| Supply voltage 50Hz Min [V] () | 220 V |
| Supply voltage [V] AC [max] () | 230 V |
| Supply voltage [V] AC [min] () | 220 V |
| Max. Working Pressure [psig] () | 655 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 80 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 176 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°F] [max] () | 175 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid valve, EVO 100
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Function: NC, Inlet connection type: Flare, Outlet connection type: Flare
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
