032F8029

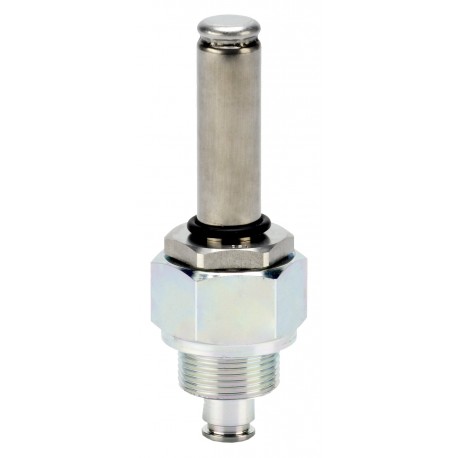

032F8029 DANFOSS REFRIGERATION EVM PILOT VALVE Flameable MU 20
$0.00USD
4002 in stock
Key Specifications
EAN ():5702428307420
Coil ():No
Type ():EVM
Volume ():0.205 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428307420 |
| Coil () | No |
| Type () | EVM |
| Volume () | 0.205 Liter |
| Approval () | EACLLC CDC TYSK |
| Function () | NC |
| Direction () | None |
| Net weight () | 0.239 Kg |
| Serviceable () | No |
| Gross weight () | 0.253 Kg |
| Refrigerants () | R1270R290R600R600aRE170 |
| MOPD[bar/psi] () | Coil Dependend |
| Product group () | Press. and temp. regul. valves |
| Packing format () | Multi pack |
| Kv value [m³/h] () | 0.25 m³/h |
| Type designation () | Solenoid valve |
| Orifice size [mm] () | 3.3 mm |
| Cv value [gal/min] () | 0.289 gal/min |
| EU RoHS compliance () | No - out of scope |
| MaxOPD[bar] 10W AC () | 21 bar |
| MaxOPD[bar] 20W DC () | 14 bar |
| MaxOPD[psi] 10W AC () | 305 psi |
| Ambient temperature () | -20 - 50 °C |
| Product accessories () | Pilot valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Inlet connection type () | Thread |
| Manual operation option () | No |
| Product Name Description () | Pilot valve |
| Max. Working Pressure [bar] () | 40 bar |
| Quantity per packing format () | 20 pc |
| Max. Working Pressure [psig] () | 580 psig |
| REACH Candidate List substances () | No |
| Medium temperature range [°C] [max] () | 105 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 221 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°F] [max] () | 120 °F |
| Ambient temperature range [°F] [min] () | -4 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pilot valve, EVM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Kv value [m³/h]: 0.250, Max. Working Pressure [bar]: 40.0
