032F6219

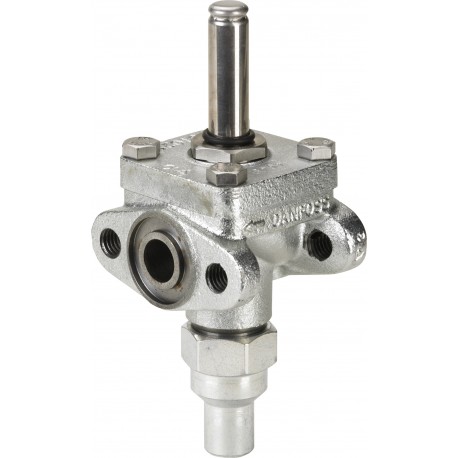

032F6219 DANFOSS REFRIGERATION Solenoid valve
$0.00USD
3322 in stock
Key Specifications
EAN ():5702422178132
Coil ():No
Type ():EVRAT 20
Volume ():6.248 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422178132 |
| Coil () | No |
| Type () | EVRAT 20 |
| Volume () | 6.248 Liter |
| Approval () | C UL US LISTEDEACLLC CDC TYSK |
| Function () | NC |
| Direction () | Straightway |
| Net weight () | 2.437 Kg |
| Serviceable () | Solenoid valve spare parts |
| Gross weight () | 2.696 Kg |
| MinODP [bar] () | 0 bar |
| MinODP [psi] () | 0 psi |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R507A |
| Body material () | Cast iron |
| Product group () | Solenoid valves |
| Packing format () | Single pack |
| Valve operation () | Servo-diaphragm |
| Kv value [m³/h] () | 4.5 m³/h |
| Type designation () | Solenoid valve |
| Orifice size [mm] () | 20 mm |
| Cv value [gal/min] () | 5.2 gal/min |
| EU RoHS compliance () | No - out of scope |
| MaxOPD[bar] 10W AC () | 14 bar |
| MaxOPD[bar] 12W AC () | 21 bar |
| MaxOPD[bar] 20W DC () | 13 bar |
| MaxOPD[psi] 14W AC () | 350 psi |
| Parts Program name () | EVRA / EVRAT |
| Ambient temperature () | -40 - 80 °C |
| Product accessories () | FlangesSolenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Inlet connection type () | Flange |
| Outlet connection type () | Flange |
| Manual operation option () | Yes |
| Medium temp. range note () | Defrost max 130°C/265°F |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Solenoid valve |
| Max. Working Pressure [bar] () | 42 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 610 psig |
| REACH Candidate List substances () | No |
| Medium temperature range [°C] [max] () | 105 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 221 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°F] [max] () | 175 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
EVRAT 20 Flange Valve Singlep.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Function: NC, Inlet connection type: Flange, Outlet connection type: Flange, Cv value [gal/min]: 5.200, Kv value [m³/h]: 4.500
