032F3083

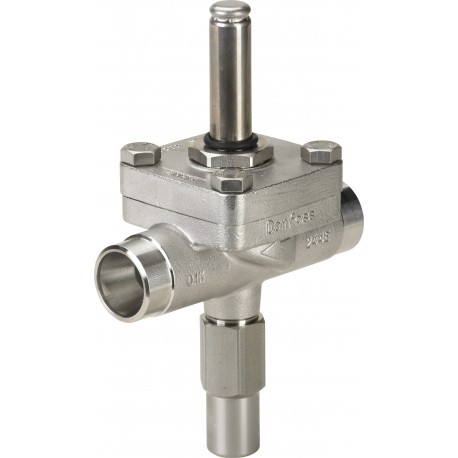

032F3083 DANFOSS REFRIGERATION Solenoid valve
$0.00USD
3188 in stock
Key Specifications
EAN ():5702422006664
Coil ():No
Type ():EVRST 10
Volume ():6.248 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422006664 |
| Coil () | No |
| Type () | EVRST 10 |
| Volume () | 6.248 Liter |
| Approval () | EACLLC CDC TYSK |
| Function () | NC |
| Direction () | Straightway |
| Net weight () | 1.139 Kg |
| Serviceable () | Solenoid valve spare parts |
| Gross weight () | 1.346 Kg |
| MinODP [bar] () | 0 bar |
| Refrigerants () | R502R717R744R507AR134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421A |
| Body material () | Stainless steel |
| Product group () | Solenoid valves |
| Packing format () | Single pack |
| Inlet size [in] () | 1/2 in |
| Valve operation () | Direct |
| Kv value [m³/h] () | 1.5 m³/h |
| Outlet size [in] () | 1/2 in |
| Type designation () | Solenoid valve |
| Orifice size [mm] () | 14 mm |
| Cv value [gal/min] () | 1.7 gal/min |
| EU RoHS compliance () | No - out of scope |
| MaxOPD[bar] 10W AC () | 14 bar |
| MaxOPD[bar] 12W AC () | 21 bar |
| MaxOPD[bar] 20W DC () | 16 bar |
| Parts Program name () | EVRS / EVRST |
| Ambient temperature () | -40 - 80 °C |
| Connection material () | Stainless steel |
| Product accessories () | Solenoid valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Inlet connection type () | Butt weld |
| Outlet connection type () | Butt weld |
| Manual operation option () | Yes |
| Medium temp. range note () | Defrost max 130°C/265°F |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Solenoid valve |
| Inlet connection standard () | EN 10220 |
| Outlet connection standard () | EN 10220 |
| Max. Working Pressure [bar] () | 50 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 725 psig |
| REACH Candidate List substances () | No |
| Medium temperature range [°C] [max] () | 105 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 221 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°F] [max] () | 175 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
EVRST 10 Valve Weld con. 1/2 in Singlep.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Function: NC, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Cv value [gal/min]: 1.700, Kv value [m³/h]: 1.500
