031E023166

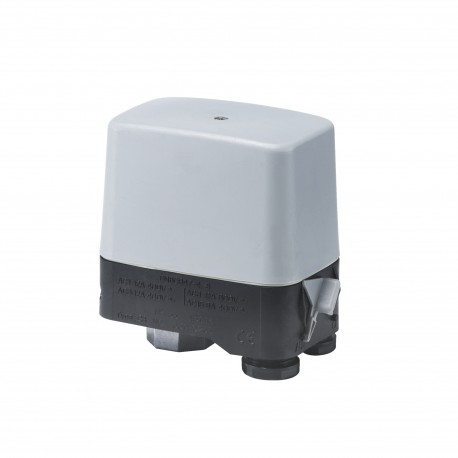

031E023166 DANFOSS CONTROLES INDUSTRIALES Pressure switch, CS
$0.00USD
3858 in stock
Key Specifications
EAN ():5702423218820
Type ():CS
Volume ():0.825 Liter
Approval ():CEEACLVDRoHSTYSKLLC CDC EURO-TYSKUKCA
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423218820 |
| Type () | CS |
| Volume () | 0.825 Liter |
| Approval () | CEEACLVDRoHSTYSKLLC CDC EURO-TYSKUKCA |
| Net weight () | 0.383 Kg |
| Serviceable () | No |
| Gross weight () | 0.433 Kg |
| Product group () | Switches and thermostats |
| Contact rating () | AC3=12 A, 220 - 415 VAC3=9 A, 600 VDC13=2 A, 220 VDC14=2 A, 220 V |
| Packing format () | Industrial pack |
| Reset function () | Auto |
| Contact function () | TPST |
| SCIP dossier no. () | d7fe15ef-cc24-4df6-b350-987ccb4862bf |
| Identical product () | 031E023066 |
| EU RoHS compliance () | Yes |
| Enclosure rating IP () | IP43 |
| Product accessories () | Switches accessories |
| Product description () | Pressure Switch |
| Pressure Male/Female () | Female |
| Electrical connection () | Screwed cable entry |
| Pressure connection size () | 1/2 |
| Pressure connection type () | G |
| Pressure sensing element () | Diaphragm |
| Product Name Description () | Pressure switch |
| Electrical spec. standard () | EN 60947-4/-5 |
| Max. test pressure [psig] () | 290 psig |
| Electrical connection size () | Pg 16 |
| Max. Working Pressure [bar] () | 12 bar |
| Max. test pressure [bar] Pe () | 20 bar |
| Quantity per packing format () | 30 pc |
| Electrical conn. Male/Female () | Female |
| Max. Working Pressure [psig] () | 174 psig |
| Pressure connection standard () | ISO 228-1 |
| Electrical connection standard () | DIN 40430 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] () | 12 bar |
| Regulation range [bar] Pe [min] () | 4 bar |
| Regulation range [psig] Pe [max] () | 174 psig |
| Regulation range [psig] Pe [min] () | 58 psig |
| Diff.@Max. range setting [bar] [max] () | 4 bar |
| Diff.@Max. range setting [bar] [min] () | 2 bar |
| Diff.@Min. range setting [bar] [max] () | 1.5 bar |
| Diff.@Min. range setting [bar] [min] () | 1 bar |
| Ambient temperature range [°C] [max] () | 70 °C |
| Ambient temperature range [°C] [min] () | -20 °C |
| Ambient temperature range [°F] [max] () | 158 °F |
| Ambient temperature range [°F] [min] () | -4 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Regulation range [bar] Pe: 4.00 - 12.00, Contact function: TPST, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/2, Pressure Male/Female: Female, Enclosure rating IP: IP43, Max. Working Pressure [bar]: 12.0
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
