In Stock Hot Product
030N5003

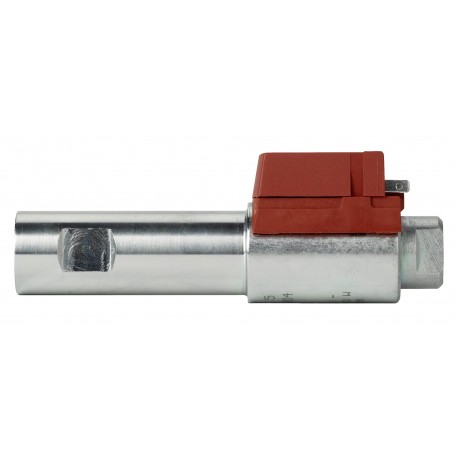

030N5003 DANFOSS HEATING Oil preheater FPHE 5
$0.00USD
3763 in stock
Key Specifications
EAN ():5702425091834
Type ():FPHE 5
Volume ():0.146 Liter
Approval ():CEIntertek Semko
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702425091834 |
| Type () | FPHE 5 |
| Volume () | 0.146 Liter |
| Approval () | CEIntertek Semko |
| Net weight () | 0.107 Kilogram |
| Thermostat () | 60/32 |
| Connections () | M8 x 1 |
| Description () | FPHE 5 |
| PTC element () | 1 x 70 |
| CE evaluated () | Yes |
| Gross weight () | 0.108 Kilogram |
| UL evaluated () | Out of scope |
| Closing valve () | No |
| Product group () | Preheaters |
| Packing format () | Industrial pack |
| Capacity [kg/h] () | 6 kg/h |
| SCIP dossier no. () | bdcea616-ab25-46f2-b243-2281a09c42af |
| EU RoHS compliance () | Yes with exemptions |
| Neck diameter [mm] () | 18.5 mm |
| Supply voltage [V] () | 230 V |
| UK RoHS compliance () | Yes with exemptions |
| China RoHS compliance () | Out of scope |
| Cut in temperature [°C] () | 60 °C |
| EU RoHS exemption clause () | 7(c)-I |
| Supply voltage [V] [Max] () | 255 V |
| Supply voltage [V] [Min] () | 180 V |
| UK RoHS exemption clause () | 21 |
| Cut out temperature [°C] () | 32 °C |
| SCIP dossier product name () | Oil preheaters FPHE 5 other |
| Quantity per packing format () | 50 pc |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Preheaters, FPHE 5, 6.00 kg/h, PTC element: 1 x 70, Thermostat: 60/32
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
FPHE 5
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
