In Stock Hot Product
030H6138

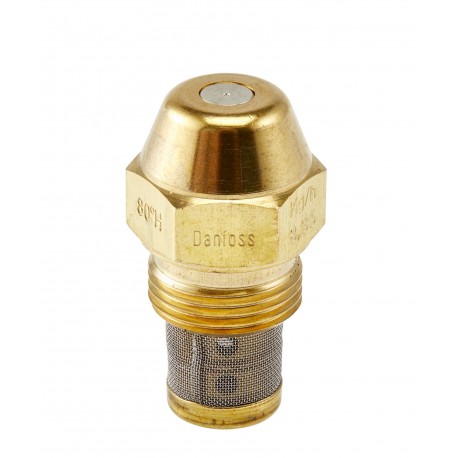

030H6138 DANFOSS HEATING Nozzle 2.75 gph 60° H OD **
$0.00USD
3826 in stock
Key Specifications
CEN ():No
EAN ():5702425011245
Type ():OD H
Shape ():Conical
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| CEN () | No |
| EAN () | 5702425011245 |
| Type () | OD H |
| Shape () | Conical |
| Volume () | 0.02 Liter |
| Approval () | CE |
| Net weight () | 0.034 Kilogram |
| Description () | 2.75GAL 60H OD |
| Filter type () | Monel strainer |
| CE evaluated () | Yes |
| Gross weight () | 0.035 Kilogram |
| UL evaluated () | Out of scope |
| Material type () | Brass |
| Product group () | Oil Nozzles |
| Spray pattern () | Hollow |
| Capacity [l/h] () | 0 L/h |
| Packing format () | Industrial pack |
| Capacity [kg/h] () | 10.48 kg/h |
| Reference point () | 7 bar, 3.4 cSt, 820 kg/m³ |
| SCIP dossier no. () | a7055499-33bd-49e7-a364-0e169ee15b9d |
| Spray angle [°] () | 60 ° |
| Capacity [USgal/h] () | 2.75 gal/h |
| EU RoHS compliance () | Yes with exemptions |
| Filter grade [µm] () | 140 |
| LE anti-drip valve () | No |
| UK RoHS compliance () | Yes with exemptions |
| Specification point () | 10 bar, 3.4 cSt, 840 kg/m³ |
| China RoHS compliance () | Out of scope |
| spray pattern marking () | H |
| EU RoHS exemption clause () | 6(a)6(a)-I6(c) |
| UK RoHS exemption clause () | 1218 |
| SCIP dossier product name () | 30 H F - Nozzle 0.00-6.00 gph |
| Quantity per packing format () | 10 pc |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Oil Nozzles, OD H, 2.75 gal/h, 10.48 kg/h, 60 °, Hollow
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
2.75GAL 60H OD
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
