In Stock Hot Product
030B0056

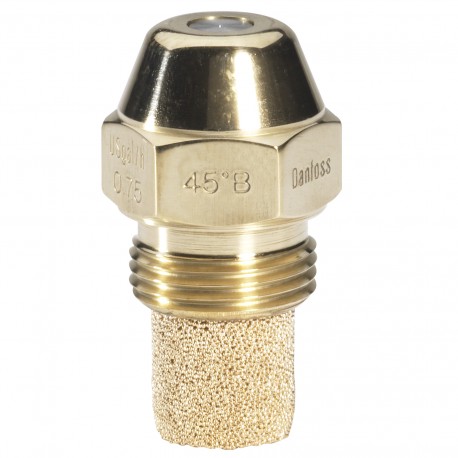

030B0056 DANFOSS HEATING Nozzle 0.85 gph 45° B OD **
$0.00USD
3418 in stock
Key Specifications
CEN ():No
EAN ():5702425002281
Type ():OD B
Shape ():Conical
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| CEN () | No |
| EAN () | 5702425002281 |
| Type () | OD B |
| Shape () | Conical |
| Volume () | 0.02 Liter |
| Approval () | CE |
| Net weight () | 0.033 Kilogram |
| Description () | 0.85GAL 45B OD |
| Filter type () | Sinter |
| CE evaluated () | Yes |
| Gross weight () | 0.034 Kilogram |
| UL evaluated () | Out of scope |
| Material type () | Brass |
| Product group () | Oil Nozzles |
| Spray pattern () | Semi solid |
| Capacity [l/h] () | 0 L/h |
| Packing format () | Industrial pack |
| Capacity [kg/h] () | 3.31 kg/h |
| Reference point () | 7 bar, 3.4 cSt, 820 kg/m³ |
| SCIP dossier no. () | 28e6ee88-87e8-4899-8be6-9efe56f29e2e |
| Spray angle [°] () | 45 ° |
| Capacity [USgal/h] () | 0.85 gal/h |
| EU RoHS compliance () | Yes with exemptions |
| Filter grade [µm] () | 45 |
| LE anti-drip valve () | No |
| UK RoHS compliance () | Yes with exemptions |
| Specification point () | 10 bar, 3.4 cSt, 840 kg/m³ |
| China RoHS compliance () | Out of scope |
| spray pattern marking () | B |
| EU RoHS exemption clause () | 6(a)6(a)-I6(c) |
| UK RoHS exemption clause () | 1218 |
| SCIP dossier product name () | OD - Nozzle - 0.00-6.00 gph |
| Quantity per packing format () | 10 pc |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Oil Nozzles, OD B, 0.85 gal/h, 3.31 kg/h, 45 °, Semi solid
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
0.85GAL 45B OD
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
