027L6506

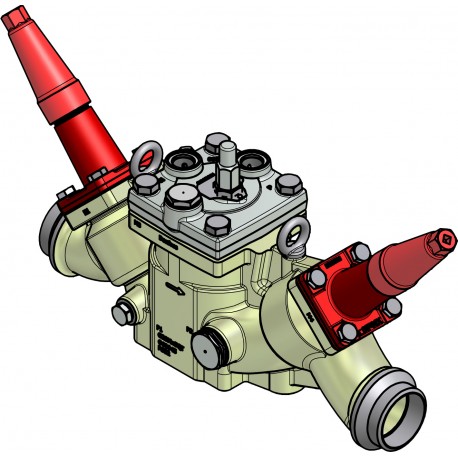

027L6506 DANFOSS REFRIGERATION Valve station
$0.00USD
3873 in stock
Key Specifications
EAN ():5702428917445
Type ():ICF 65-3-42S40
Volume ():211.2 Liter
Approval ():C UL US LISTEDCEEACTÜVUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428917445 |
| Type () | ICF 65-3-42S40 |
| Volume () | 211.2 Liter |
| Approval () | C UL US LISTEDCEEACTÜVUKCA |
| Comments () | STOP-ICS-STOP |
| Module 1 () | Stop valve |
| Module 3 () | Control valve |
| Module 4 () | Stop valve |
| Direction () | Straightway |
| Equipment () | Cap |
| Net weight () | 33.24 Kg |
| Fluid Group () | 1 |
| Serviceable () | ICF spare parts |
| Gross weight () | 46.5 Kg |
| PED category () | II |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R227eaR236faR245faR32R407HR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR513AR513BR515AR515BR516A |
| Body material () | Steel |
| Module 1 type () | SVA-S 65 |
| Module 3 type () | ICS 65-40 |
| Module 4 type () | SVA-S 65 |
| Product group () | Multifunction valves |
| Type code ICF () | ICF-65-3-65ASXXBG3SXXXXX2KXX |
| Packing format () | Single pack |
| Connection type () | Butt weld |
| Surface coating () | ZnCr04 |
| EU RoHS compliance () | No - out of scope |
| Connection standard () | ASME B 36.10M SCHEDULE 80 |
| Product accessories () | ICF accessories |
| Product description () | Control Solution |
| Side port placement () | P1-P3 |
| Connection size [in] () | 2½ in |
| Connection size [mm] () | 65 mm |
| Defrost port placement () | P2-P4 |
| Side port quantity [pc] () | 2 pc |
| Product Name Description () | Valve station |
| Defrost port quantity [pc] () | 2 pc |
| Max. Working Pressure [bar] () | 52 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 248 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Valve Station ICF 65-3-42S40
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Connection size [mm]: 65, Connection type: Butt weld, Body material: Steel, Surface coating: ZnCr04, Max. Working Pressure [bar]: 52.0, Temperature range [°C]: -60 - 120
