In Stock Hot Product
027L4734

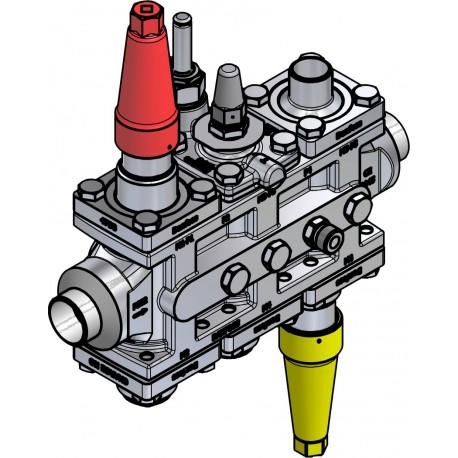

027L4734 DANFOSS REFRIGERATION Valve station
$0.00USD
4360 in stock
Key Specifications
EAN:5702428928892
Category:II
Module 1:Stop valve
Module 2:Filter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428928892 |
| Category | II |
| Module 1 | Stop valve |
| Module 2 | Filter |
| Module 3 | Solenoid valve |
| Module 4 | Check valve |
| Module 5 | Welding, 25 DIN |
| Module 6 | Manual regulating valve |
| Direction | Straightway |
| Equipment | Cap |
| Net weight | 0.01 Kg |
| Fluid Group | I |
| Gross weight | 23.11 Kg |
| Product name | Valve station |
| Product type | ICF SS 25-6-15RB |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507R717R744 |
| Body material | Stainless steel |
| Module 1 type | ICFS SS 25 |
| Module 2 type | ICFF SS 25 |
| Module 3 type | ICFE SS 25 |
| Module 4 type | ICFC SS 25 |
| Module 5 type | ICFW SS 25-D |
| Module 6 type | ICFR SS 25-B |
| Product Group | Multifunction valves |
| Type code ICF | ICF-25-6-32KSXFXEHCXW1RB6FXX |
| Packing format | Single pack |
| Connection type | Butt weld |
| Connection material | Stainless steel |
| Connection standard | EN 10220 |
| Product description | Control Solution |
| Side port placement | P2-P4-P5-P7-P9-P10 |
| Connection size [in] | 1 1/4 in |
| Connection size [mm] | 32 mm |
| Side port quantity [pc] | 6 pc |
| Flow direction indicator | Embossed 1-way arrow |
| Side port connection type | G |
| Max. Working Pressure [bar] | 52 bar |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 754 psig |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Side port connection size [in] | 3/8 in |
Product Description
Valve Station ICF SS 25-6-15RB
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
