027L4540

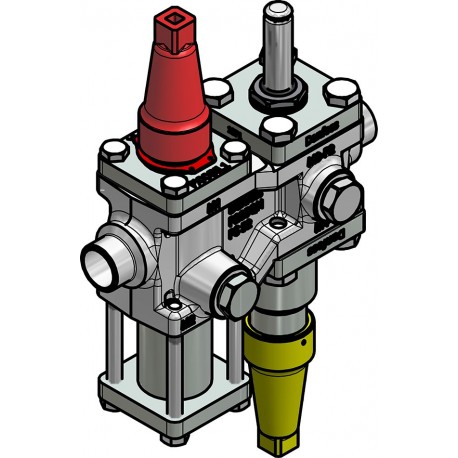

027L4540 DANFOSS REFRIGERATION Valve station
$0.00USD
4367 in stock
Key Specifications
EAN:5702428913607
Category:Art. 3, par. 3
Module 1:Stop valve
Module 2:Filter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428913607 |
| Category | Art. 3, par. 3 |
| Module 1 | Stop valve |
| Module 2 | Filter |
| Module 3 | Solenoid valve |
| Module 4 | Manual regulating valve |
| Direction | Straightway |
| Equipment | Cap |
| Net weight | 0.01 Kg |
| Fluid Group | I |
| Gross weight | 6.7 Kg |
| Product name | Valve station |
| Product type | ICF 15-4-10RB |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507R717R744 |
| Body material | Steel |
| Module 1 type | ICFS 15 |
| Module 2 type | ICFF 15 |
| Module 3 type | ICFE 20 |
| Module 4 type | ICFR 20-B |
| Product Group | Multifunction valves |
| Type code ICF | ICF-15-4-20DSYFYEXRBXXXX2AXX |
| Packing format | Single pack |
| Connection type | Butt weld |
| Surface coating | Zn (TLP) |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Product description | Control Solution |
| Side port placement | P1-P2 |
| Connection size [in] | 3/4 in |
| Connection size [mm] | 20 mm |
| Side port quantity [pc] | 2 pc |
| Flow direction indicator | Embossed 1-way arrow |
| Side port connection type | G |
| Max. Working Pressure [bar] | 52 bar |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 450 psig |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Side port connection size [in] | 3/8 in |
Product Description
Valve Station ICF 15-4-10RB
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
