In Stock Hot Product
027L4519

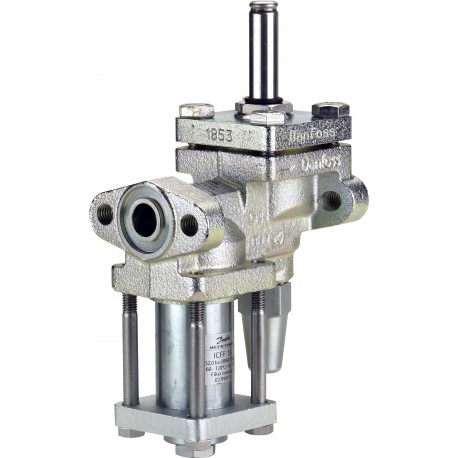

027L4519 DANFOSS REFRIGERATION Valve station
$0.00USD
3665 in stock
Key Specifications
EAN:5702428884167
Category:Art. 3, par. 3
Module 2:Filter
Module 3:Solenoid valve
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428884167 |
| Category | Art. 3, par. 3 |
| Module 2 | Filter |
| Module 3 | Solenoid valve |
| Direction | Straightway |
| Net weight | 4.71 Kg |
| Fluid Group | I |
| Gross weight | 5.23 Kg |
| Product name | Valve station |
| Product type | ICF 20 EVRAT |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507R717R744 |
| Body material | Steel |
| Module 2 type | ICFF 15 |
| Module 3 type | ICFE20H |
| Product Group | Multifunction valves |
| Packing format | Single pack |
| Connection type | Flange |
| Surface coating | Zn (TLP) |
| Connection material | Steel |
| Product description | Control Solution |
| Connection size [in] | 3/4 in |
| Connection size [mm] | 20 mm |
| Flow direction indicator | Embossed 1-way arrow |
| Max. Working Pressure [bar] | 42 bar |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 610 psig |
| Temperature range [°C] [Max] | 105 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 221 °F |
| Temperature range [°F] [Min] | -40 °F |
Product Description
Valve StationICF 20 EVRAT
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
