027L4002

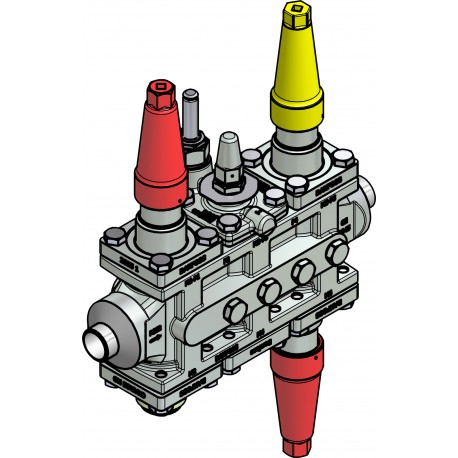

027L4002 DANFOSS REFRIGERATION Valve station
$0.00USD
3728 in stock
Key Specifications
EAN ():5702428239141
Type ():ICF 25-6-1RA
Volume ():35.34 Liter
Approval ():CEEACLLC CDC TYSKTÜVULUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428239141 |
| Type () | ICF 25-6-1RA |
| Volume () | 35.34 Liter |
| Approval () | CEEACLLC CDC TYSKTÜVULUKCA |
| Module 1 () | Stop valve |
| Module 2 () | Filter |
| Module 3 () | Solenoid valve |
| Module 4 () | Blank top cover |
| Module 5 () | Manual regulating valve |
| Module 6 () | Stop valve |
| Direction () | Straightway |
| Equipment () | Cap |
| Net weight () | 23.566 Kg |
| Fluid Group () | 1 |
| Serviceable () | ICF spare parts |
| Gross weight () | 24.5 Kg |
| PED category () | II |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R227eaR236faR245faR32R407HR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR513AR513BR515AR515BR516A |
| Body material () | Steel |
| Module 1 type () | ICFS 25 |
| Module 2 type () | ICFF 25 |
| Module 3 type () | ICFE 25 |
| Module 4 type () | ICFB 25 |
| Module 5 type () | ICFR 25A |
| Module 6 type () | ICFS 25 |
| Product group () | Multifunction valves |
| Type code ICF () | ICF-25-6-25DSXFXEHBXRASX61XX |
| Packing format () | Single pack |
| Connection type () | Butt weld |
| Surface coating () | Zn (TLP) |
| SCIP dossier no. () | 237f365e-f211-4199-a63b-900f6a811f69 |
| EU RoHS compliance () | No - out of scope |
| Connection material () | Steel |
| Connection standard () | EN 10220 |
| Product accessories () | ICF accessories |
| Product description () | Control Solution |
| Side port placement () | P2-P4-P5-P7-P9-P10 |
| Connection size [in] () | 1 in |
| Connection size [mm] () | 25 mm |
| UL approval file name () | REFRIGERANT VALVE 53R0 |
| Side port quantity [pc] () | 6 pc |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Valve station |
| Side port connection type () | G |
| Max. Working Pressure [bar] () | 52 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 248 °F |
| Temperature range [°F] [min] () | -76 °F |
| Side port connection size [in] () | 3/8 in |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Valve Station ICF 25-6-1RA
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Connection size [mm]: 25, Connection type: Butt weld, Body material: Steel, Surface coating: Zn (TLP), Max. Working Pressure [bar]: 52.0, Temperature range [°C]: -60 - 120
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
