027H9068

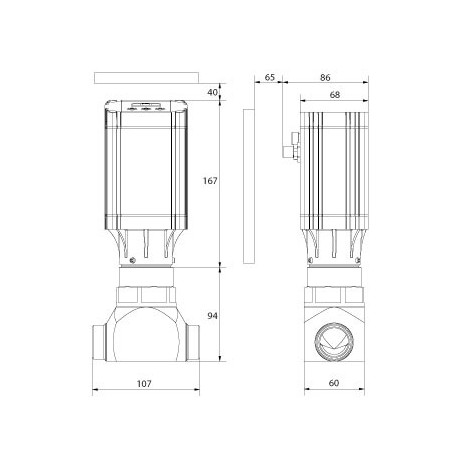

027H9068 DANFOSS REFRIGERATION Actuators for ICM
$0.00USD
3230 in stock
Key Specifications
EAN ():5702428248808
Type ():ICAD 600TS
Volume ():6.248 Liter
Approval ():CECRNEACLLC CDC TYSKULUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428248808 |
| Type () | ICAD 600TS |
| Volume () | 6.248 Liter |
| Approval () | CECRNEACLLC CDC TYSKULUKCA |
| Function () | Digital output |
| Motor type () | Digital stepper mortor |
| Net weight () | 1.714 Kg |
| Total steps () | 250 (full steps) |
| Display type () | LCD |
| Gross weight () | 1.748 Kg |
| Product group () | Press. and temp. regul. valves |
| Packing format () | Single pack |
| Valve operation () | Modulating;ON/OFF |
| Cable length [m] () | 1.5 m |
| Used for product () | ICMTS 20AICMTS 20BICMTS 20B66ICMTS 20CICMTS 20 A33 |
| Cable length [in] () | 60 in |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | ICMTS |
| Enclosure rating IP () | IP67 |
| Product accessories () | ICAD accessories |
| Product description () | Actuator |
| Output configuration () | NPN Transistor |
| Supply voltage [V] DC () | 24 V |
| UL approval file name () | REFRIGERANT VALVE 53R0 |
| Supply cable size [AWG] () | 3 x ~22 AWG, Ø0.19 in |
| Supply cable size [mm2] () | 3 x 0,34 mm, Ø4,8 mm |
| Supply voltage load [A] () | 1.2 A |
| Control cable size [AWG] () | 7 x ~24 AWG, Ø0.24 in |
| Control cable size [mm2] () | 7 x 0,25 mm, Ø6 mm |
| Product Name Description () | Actuator |
| Digital Output-Load [Ohm] () | 50 |
| Digital outputs (DO) [pc] () | 3 pc |
| Enclosure rating Nema (~) () | 6 |
| Quantity per packing format () | 1 pc |
| Digital Output-Max Load [mA] () | 50 mA |
| Load Analog output max [Ohm] () | 250 |
| Temperature range [°C] [max] () | 50 °C |
| Temperature range [°C] [min] () | -30 °C |
| Temperature range [°F] [max] () | 122 °F |
| Temperature range [°F] [min] () | -22 °F |
| Compatible Danfoss controllers () | EKC 326A |
| Load Analog input Current[Ohm] () | 200 |
| Load Analog input Voltage[Ohm] () | 10000 |
| REACH Candidate List substances () | No |
| Analog output options [mA] [max] () | 20 mA |
| Analog output options [mA] [min] () | 4 mA |
| Supply voltage tolerance [%] [max] () | 10 % |
| Supply voltage tolerance [%] [min] () | -15 % |
| Analog input Volt opt. [V] d.c [max] () | 10 V |
| Analog input Volt opt. [V] d.c [min] () | 2 V |
| Analog input current opt. [mA] [max] () | 20 mA |
| Analog input current opt. [mA] [min] () | 4 mA |
| Dig. Output-Ext supply [V] d.c [max] () | 24 V |
| Dig. Output-Ext supply [V] d.c [min] () | 5 V |
| Ambient temperature range [°C] [max] () | 50 °C |
| Ambient temperature range [°C] [min] () | -30 °C |
| Ambient temperature range [°F] [max] () | 122 °F |
| Ambient temperature range [°F] [min] () | -22 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Actuator, ICAD 600TS
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Product Type: ICAD 600TS, Used for product: ICMTS 20B66; ICMTS 20B; ICMTS 20A; ICMTS 20C; ICMTS 20 A33
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
