027H7232

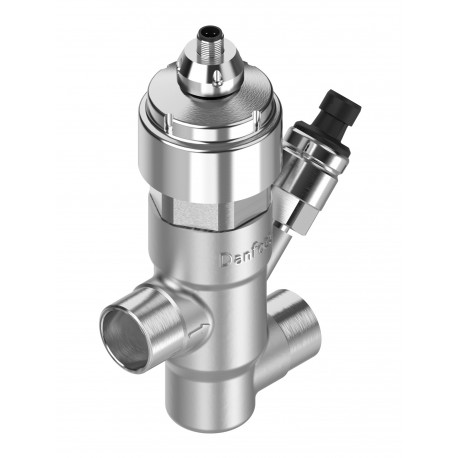

027H7232 DANFOSS REFRIGERATION Electric regulating valve
$0.00USD
3614 in stock
Key Specifications
EAN ():5702428921824
Type ():CCMT 24
Volume ():7.658 Liter
Approval ():LLC CDC EURO-TYSKUL
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428921824 |
| Type () | CCMT 24 |
| Volume () | 7.658 Liter |
| Approval () | LLC CDC EURO-TYSKUL |
| Net weight () | 0.007 Kg |
| Serviceable () | Electric valve spare parts |
| Gross weight () | 3.026 Kg |
| MaxOPD [bar] () | 90 bar |
| Refrigerants () | R134aR744R410A |
| MaxOPD [psig] () | 1305 psig |
| Product group () | Press. and temp. regul. valves |
| Packing format () | Single pack |
| Connection type () | Solder, ODF |
| Kv value [m³/h] () | 2.4 m³/h |
| SCIP dossier no. () | 86df1595-1afa-4588-8508-53267586ff81 |
| Cv value [gal/min] () | 2.784 gal/min |
| EU RoHS compliance () | No - out of scope |
| Connection standard () | EN10220 |
| Product accessories () | Electric valve accessories |
| Product description () | Electric Expansion Valve |
| Product Name Description () | Electric regulating valve |
| UL approved refrigerants () | R134aR744 |
| Connection Weld size [in] () | 1 in |
| Connection Solder size [in] () | 1 1/8 in |
| Max. Working Pressure [bar] () | 140 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 2030 psig |
| Temperature range [°C] [max] () | 60 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 140 °F |
| Temperature range [°F] [min] () | -40 °F |
| Diff.press.setting range [bar] () | 90 bar |
| Diff.press.setting range [psi] () | 1305 psi |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 60 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 140 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
CCMT 24 Electric reg. valve
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R744; R410A; R134a, Kv value [m³/h]: 2.400, Max. Working Pressure [bar]: 140.0, Packing format: Single pack, Quantity per packing format: 1
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
