027H7201

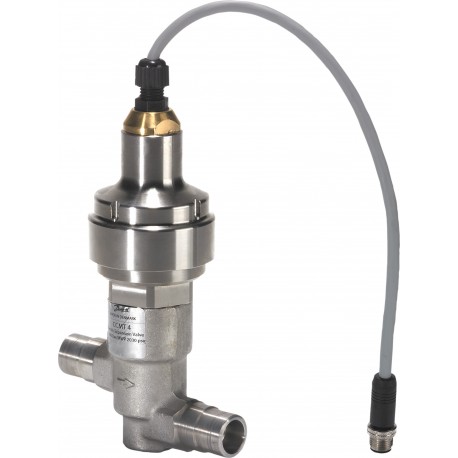

027H7201 DANFOSS REFRIGERATION Electric regulating valve
$0.00USD
4667 in stock
Key Specifications
EAN ():5702428453363
Type ():CCMT 4
Volume ():6.248 Liter
Approval ():LLC CDC EURO-TYSKUL
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428453363 |
| Type () | CCMT 4 |
| Volume () | 6.248 Liter |
| Approval () | LLC CDC EURO-TYSKUL |
| Net weight () | 1.5 Kilogram |
| Serviceable () | Electric valve spare parts |
| Gross weight () | 1.86 Kilogram |
| MaxOPD [bar] () | 90 bar |
| Refrigerants () | R1234yfR134aR410AR744 |
| UL evaluated () | Yes |
| MaxOPD [psig] () | 1305 psig |
| Product group () | Press. and temp. regul. valves |
| Packing format () | Single pack |
| Connection type () | Solder, ODF |
| Kv value [m³/h] () | 0.45 m³/h |
| SCIP dossier no. () | 86df1595-1afa-4588-8508-53267586ff81 |
| Cv value [gal/min] () | 0.52 gal/min |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Connection standard () | EN10220 |
| Product accessories () | Electric valve accessories |
| Product description () | Electric Expansion Valve |
| China RoHS compliance () | Out of scope |
| Product Name Description () | Electric regulating valve |
| UL approved refrigerants () | R134aR744 |
| Connection Weld size [in] () | 1/2 in |
| Connection Solder size [in] () | 5/8 in |
| Max. Working Pressure [bar] () | 140 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 2030 psig |
| Temperature range [°C] [max] () | 60 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 140 °F |
| Temperature range [°F] [min] () | -40 °F |
| Diff.press.setting range [bar] () | 90 bar |
| Diff.press.setting range [psi] () | 1305 psi |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 60 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 140 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
CCMT 4 Electric reg. valve
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R744; R410A; R134a; R1234yf, Kv value [m³/h]: 0.450, Max. Working Pressure [bar]: 140.0, Packing format: Single pack, Quantity per packing format: 1
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
