027H6034

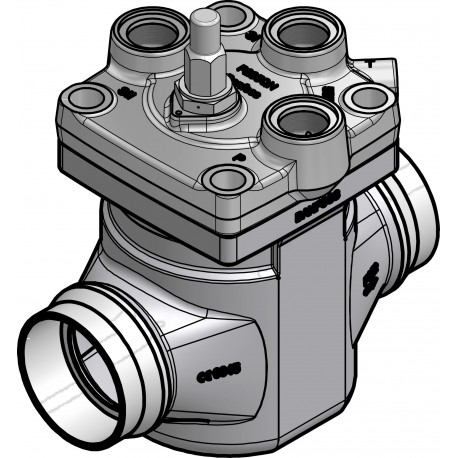

027H6034 DANFOSS REFRIGERATION ICS3 65 76 SD
$2,392.15USD
42 in stock
Key Specifications
EAN ():5702428235433
Type ():ICS3 65
Brand ():ICV Flexline
Volume ():20.671 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428235433 |
| Type () | ICS3 65 |
| Brand () | ICV Flexline |
| Volume () | 20.671 Liter |
| Approval () | EACLLC CDC TYSKTÜVUL |
| Direction () | Straightway |
| Top cover () | 3 function modules |
| Net weight () | 14.16 Kg |
| Fluid Group () | 1 |
| Serviceable () | ICM / ICS / ICLX spare parts |
| Gross weight () | 15.37 Kg |
| PED category () | II |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R1234ze(E)R507AR1234yfR125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Body material () | Steel |
| Product group () | Press. and temp. regul. valves |
| Valve version () | Standard version |
| Packing format () | Single pack |
| Surface coating () | Zn (TLP) |
| Valve operation () | Pilot operated |
| Kv value [m³/h] () | 70 m³/h |
| Cv value [gal/min] () | 81.2 gal/min |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | ICS |
| Connection material () | Steel |
| Connection standard () | EN 1254-1 |
| Product accessories () | ICM / ICS / ICLX accessories |
| Product description () | Servo operated valve |
| Inlet connection type () | Soldering |
| Opening configuration () | Closed (delta p=0 bar)Full open (delta p≥0.2 bar)PropOpen (delta p=0.07-0.2bar) |
| UL approval file name () | REFRIGERANT VALVE 53R0 |
| Outlet connection type () | Soldering |
| Manual operation option () | Manual open spindle |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Pilot operated servo valve |
| Pressure gauge connection () | Int. thread with blind plug |
| Inlet connection size [mm] () | 76 mm |
| Max. Working Pressure [bar] () | 65 bar |
| Outlet connection size [mm] () | 76 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 943 psig |
| Ext pilot pressure connection () | Weld nipple (P2 Port) |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 248 °F |
| Temperature range [°F] [min] () | -76 °F |
| Pilot connection configuration () | P: Parallel connectionSI-SII: Serial connection |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Pilot operated servo valve
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pilot operated servo valve
