027H6010

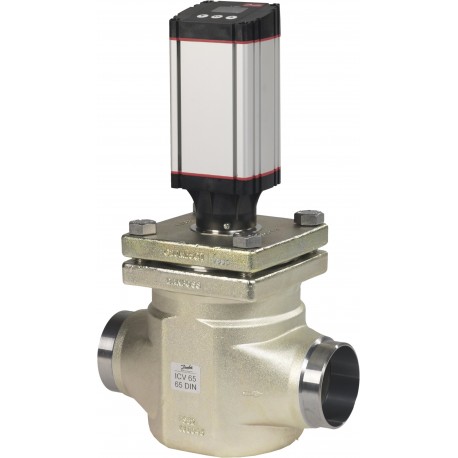

027H6010 DANFOSS REFRIGERATION Motor operated valve
$0.00USD
4511 in stock
Key Specifications
EAN:5702428255738
Brand:ICV Flexline
Category:II
Direction:Straightway
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428255738 |
| Brand | ICV Flexline |
| Category | II |
| Direction | Straightway |
| Top cover | Actuator |
| Net weight | 15.08 Kg |
| Fluid Group | I |
| Serviceable | ICM / ICS / ICLX spare parts |
| Gross weight | 15.08 Kg |
| MaxOPD [bar] | 20 bar |
| Product name | Motor operated valve |
| Product type | ICM 65-A |
| Refrigerants | R1234zeR134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507R717R744 |
| Body material | Steel |
| MaxOPD [psig] | 271.2903 psig |
| Product Group | Press. and temp. regul. valves |
| Valve version | Standard version |
| Packing format | Single pack |
| Actuator system | ICAD motor, magnet coupling |
| Surface coating | Zn (TLP) |
| Valve operation | Motor operated |
| Kv value [m³/h] | 35 m3/h |
| Cv value [gal/min] | 40.6 gal/min |
| Parts Program name | ICM |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Open/close time [s] | 13 " |
| Product accessories | ICAD accessoriesICM / ICS / ICLX accessories |
| Product description | Motor operated valve |
| Inlet connection type | Butt weld |
| Outlet connection type | Butt weld |
| Manual operation option | Via ICAD settingVia Multifunction tool |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection size [in] | 2 1/2 in |
| Inlet connection size [mm] | 65 mm |
| Max. Working Pressure [bar] | 52 bar |
| Outlet connection size [in] | 2 1/2 in |
| Outlet connection size [mm] | 65 mm |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 754 psig |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
Product Description
ICM 65-A65 DSTR
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
