027H5204

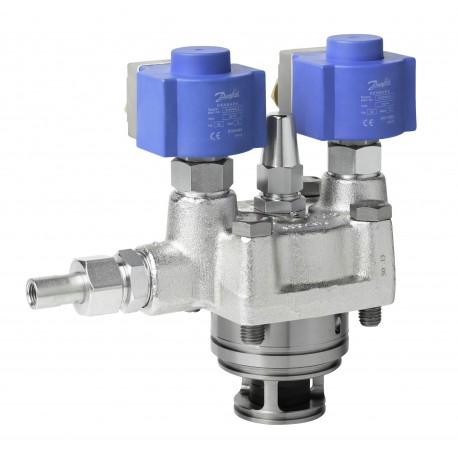

027H5204 DANFOSS REFRIGERATION Function module
$0.00USD
4707 in stock
Key Specifications
EAN ():5702428483179
Type ():ICLX 50
Brand ():ICV Flexline
Volume ():20.671 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428483179 |
| Type () | ICLX 50 |
| Brand () | ICV Flexline |
| Volume () | 20.671 Liter |
| Net weight () | 5.016 Kg |
| Description () | Function module |
| Serviceable () | ICM / ICS / ICLX spare parts |
| Gross weight () | 8.859 Kg |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Product group () | Press. and temp. regul. valves |
| Packing format () | Single pack |
| Actuator system () | 2 EVM pilot sol valve module |
| Valve operation () | Solenoid operated |
| Kv value [m³/h] () | 47 m³/h |
| Used for product () | ICV 50 |
| Cv value [gal/min] () | 54.5 gal/min |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | ICLX |
| Product accessories () | ICM / ICS / ICLX accessories |
| Product description () | Function Module |
| Opening configuration () | 1-step (optional setting)2-step (default) |
| Step 2 initialization () | Delta p1.25 bar (18 psig) |
| Manual operation option () | Manual open spindle |
| Product Name Description () | Function module |
| Used for product comments () | With top assembly |
| Quantity per packing format () | 1 pc |
| Ext pilot pressure connection () | Weld nipple (P2 Port) |
| Step 1 opening degree (~) [%] () | 10 % |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
ICLX 50 Function module
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Description: Function module, Function module, Used for product: ICV 50, Kv value [m³/h]: 47.000
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
