027H4040

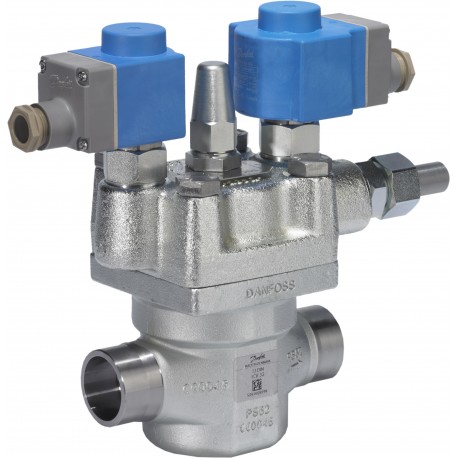

027H4040 DANFOSS REFRIGERATION 2-step solenoid valve
$0.00USD
3840 in stock
Key Specifications
EAN ():5702428815598
Type ():ICLX 40
Brand ():ICV Flexline
Volume ():8.68 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428815598 |
| Type () | ICLX 40 |
| Brand () | ICV Flexline |
| Volume () | 8.68 Liter |
| Approval () | EACLLC CDC TYSKTÜVUL |
| Direction () | Straightway |
| Net weight () | 6.333 Kg |
| Description () | 2-step solenoid valve |
| Fluid Group () | 1 |
| Serviceable () | ICM / ICS / ICLX spare parts |
| Gross weight () | 9.542 Kg |
| PED category () | II |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Body material () | Steel |
| Product group () | Solenoid valves |
| Valve version () | Standard version |
| Packing format () | Single pack |
| Actuator system () | 2 EVM pilot sol valve module |
| Surface coating () | Zn (TLP) |
| Valve operation () | Solenoid operated |
| Kv value [m³/h] () | 29 m³/h |
| Cv value [gal/min] () | 33.64 gal/min |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | ICLX |
| Connection material () | Steel |
| Connection standard () | EN 10220 |
| Product accessories () | ICM / ICS / ICLX accessories |
| Product description () | Solenoid Valve |
| Inlet connection type () | Butt weld |
| Opening configuration () | 1-step (optional setting)2-step (default) |
| Step 2 initialization () | Delta p1.25 bar (18 psig) |
| UL approval file name () | REFRIGERANT VALVE 53R0 |
| Outlet connection type () | Butt weld |
| Manual operation option () | Manual open spindle |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | 2-step solenoid valve |
| Inlet connection size [in] () | 1 1/2 in |
| Inlet connection size [mm] () | 40 mm |
| Max. Working Pressure [bar] () | 65 bar |
| Outlet connection size [in] () | 1 1/2 in |
| Outlet connection size [mm] () | 40 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 943 psig |
| Ext pilot pressure connection () | Weld nipple (P2 Port) |
| Step 1 opening degree (~) [%] () | 10 % |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 248 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
ICLX 40 DIN
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Description: 2-step solenoid valve, 2-step solenoid valve, Kv value [m³/h]: 29.000
