027H3510

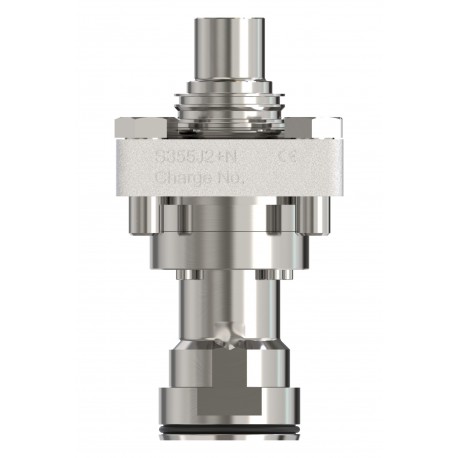

027H3510 DANFOSS REFRIGERATION Motorized Expansion Valve, High Press, ICMTS 50A
$0.00USD
3836 in stock
Key Specifications
EAN ():5715162605479
Type ():ICMTS 50A
Approval ():CEUKCAULCRN
Comments ():SVL - 140B
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5715162605479 |
| Type () | ICMTS 50A |
| Approval () | CEUKCAULCRN |
| Comments () | SVL - 140B |
| Direction () | None |
| Net weight () | 2.7 Kilogram |
| Fluid Group () | 1 |
| Serviceable () | ICM / ICS / ICLX spare parts |
| Gross weight () | 3.35 Kilogram |
| MaxOPD [bar] () | 90 bar |
| PED category () | I |
| Refrigerants () | R744 |
| Body material () | Steel |
| MaxOPD [psig] () | 1305 psig |
| Product group () | Expansion valves |
| Packing format () | Single pack |
| Valve operation () | Direct |
| Application area () | Transcritical CO2 systems |
| Kv value [m³/h] () | 9 m³/h |
| Cv value [gal/min] () | 10.404 gal/min |
| Parts Program name () | ICMTS |
| Connection material () | Steel |
| Connection standard () | EN 10220 |
| Open/close time [s] () | 8 s |
| Product accessories () | ICAD accessoriesICM / ICS / ICLX accessories |
| Product description () | High press. exp. motor valve |
| UL approval file name () | REFRIGERANT VALVE 53R0 |
| Manual operation option () | Via ICAD settingVia Multifunction tool |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Function module |
| Max. Working Pressure [bar] () | 140 bar |
| Operation temp. [°C] [max] () | 50 °C |
| Operation temp. [°C] [min] () | -40 °C |
| Operation temp. [°F] [max] () | 122 °F |
| Operation temp. [°F] [min] () | -40 °F |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 2030 psig |
| Allowable temp. TS [°C] [max] () | 150 °C |
| Allowable temp. TS [°C] [min] () | -60 °C |
| Allowable temp. TS [°F] [max] () | 302 °F |
| Allowable temp. TS [°F] [min] () | -76 °F |
| Compatible Danfoss controllers () | EKC 326A |
| In scope of WEEE and contain batteries () | No |
Product Description
Function module, High press. exp. motor valve, ICMTS 50A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Kv value [m³/h]: 9.000, Max. Working Pressure [bar]: 140.0
