027H3309

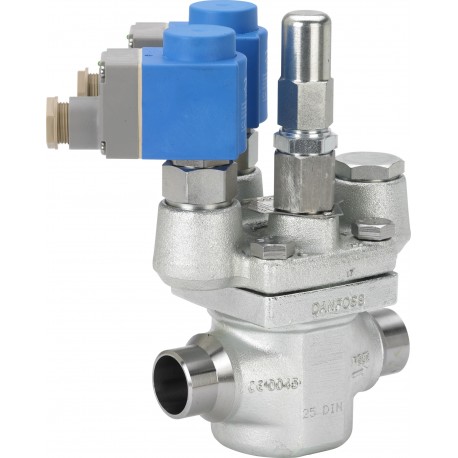

027H3309 DANFOSS REFRIGERATION Pilot operated servo valve
$0.00USD
3898 in stock
Key Specifications
EAN ():5702428999304
Type ():ICSH 32
Volume ():8.68 Liter
Approval ():EACLLC CDC TYSKTÜVUL
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428999304 |
| Type () | ICSH 32 |
| Volume () | 8.68 Liter |
| Approval () | EACLLC CDC TYSKTÜVUL |
| Direction () | Straightway |
| Top cover () | 3 function modules |
| Net weight () | 5.738 Kg |
| Fluid Group () | 1 |
| Gross weight () | 6.535 Kg |
| PED category () | II |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Product group () | Press. and temp. regul. valves |
| Valve version () | Standard version |
| Packing format () | Single pack |
| Kv value [m³/h] () | 17 m³/h |
| Cv value [gal/min] () | 20 gal/min |
| EU RoHS compliance () | No - out of scope |
| Connection standard () | EN 10220 |
| Product description () | Servo operated valve |
| Inlet connection type () | Butt weld |
| UL approval file name () | REFRIGERANT VALVE 53R0 |
| Outlet connection type () | Butt weld |
| Product Name Description () | Pilot operated servo valve |
| Inlet connection size [in] () | 1 1/4 in |
| Inlet connection size [mm] () | 32 mm |
| Max. Working Pressure [bar] () | 65 bar |
| Outlet connection size [in] () | 1 1/4 in |
| Outlet connection size [mm] () | 32 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 943 psig |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 248 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
ICSH 32 DIN
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Butt weld, Connection standard: EN 10220, Inlet connection size [mm]: 32.0, Kv value [m³/h]: 17.000
